The universal machines for a broad range of internal cylindrical grinding applications.
Basic Data

The S141 is a CNC universal internal cylindrical grinding machine of the latest generation. Three sizes are available for workpiece lengths (including clamping devices) of 300mm (11.8"), 700mm (27.5") and 1300mm (51.2"). For all models the maximum grinding length is 250mm (9.8") for internal and 150mm (5.9") for external diameters.

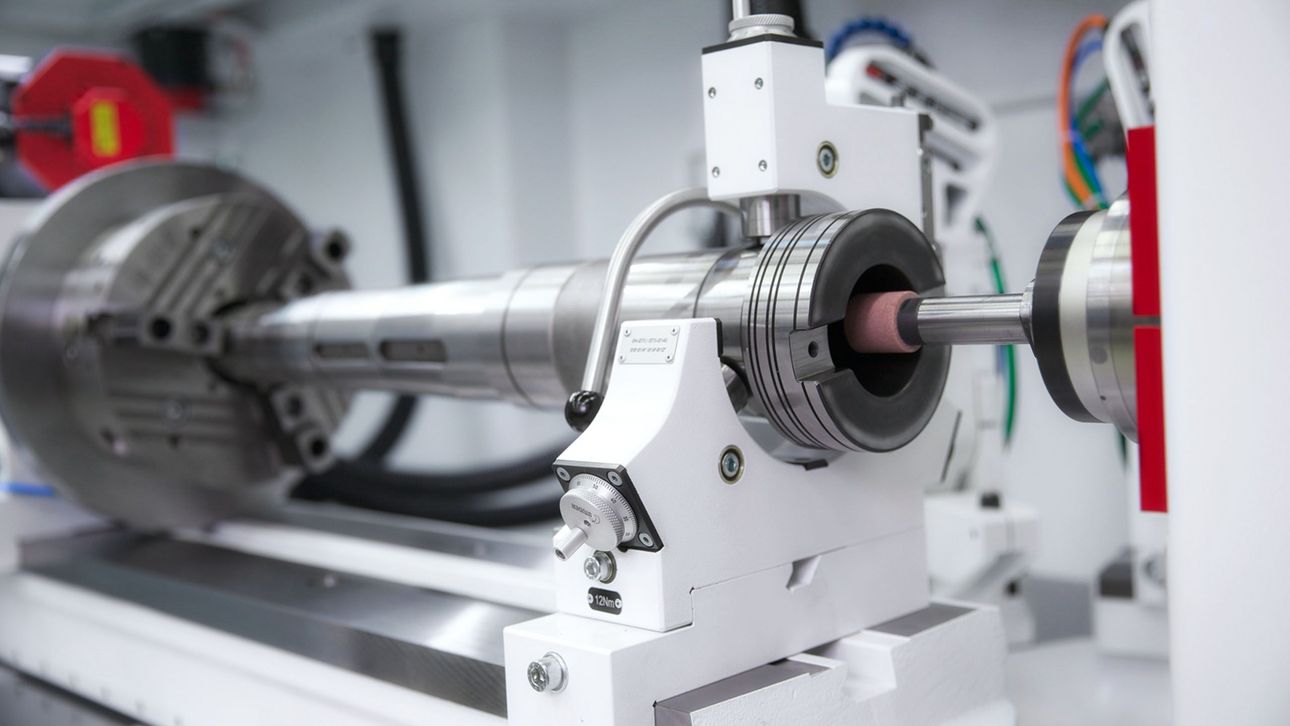

The S141 is the ideal machine for grinding spindle shafts, spindle housings, rotor shaft axes or flange parts. Many workpieces are to be found in the areas of machine tools,  drive elements, aerospace and tooling.

Images
Hardware / Software

Hardware:

  • StuderGuide® guideway system with linear drive

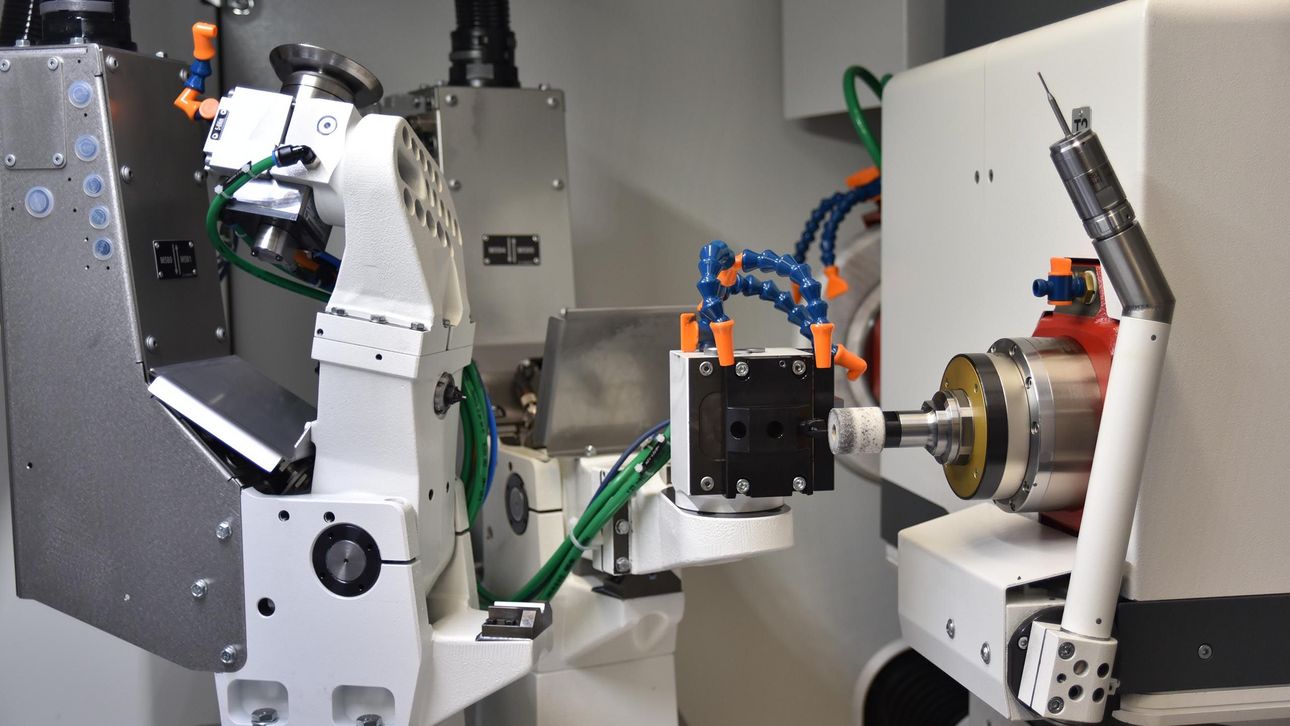

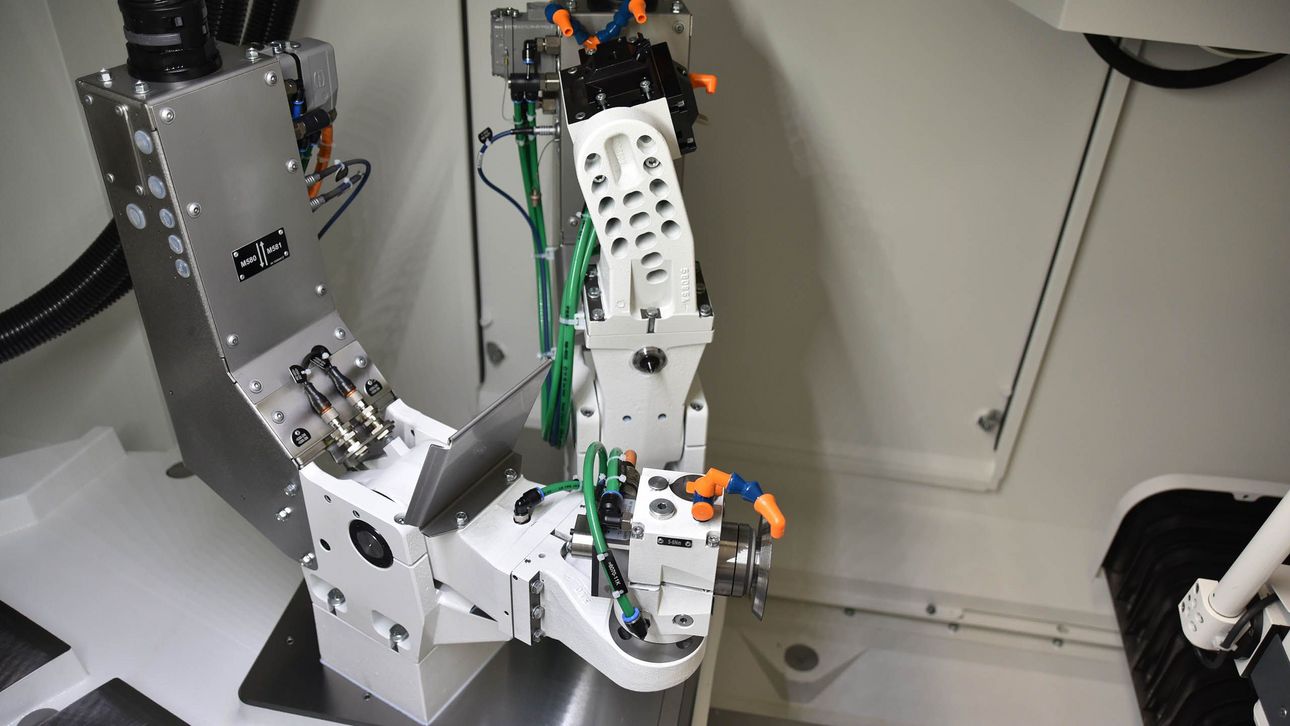

  • Grinding spindle turret with up to four grinding spindles
  • Automatically swiveling workpiece table

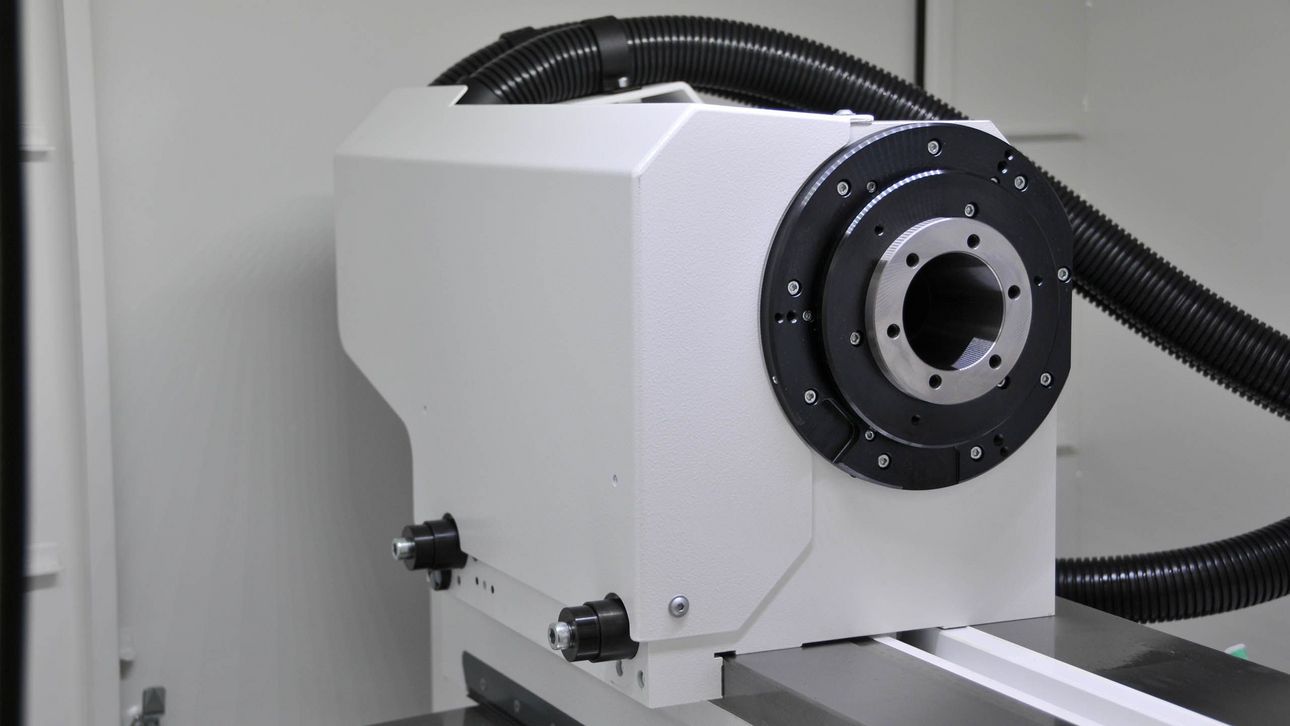

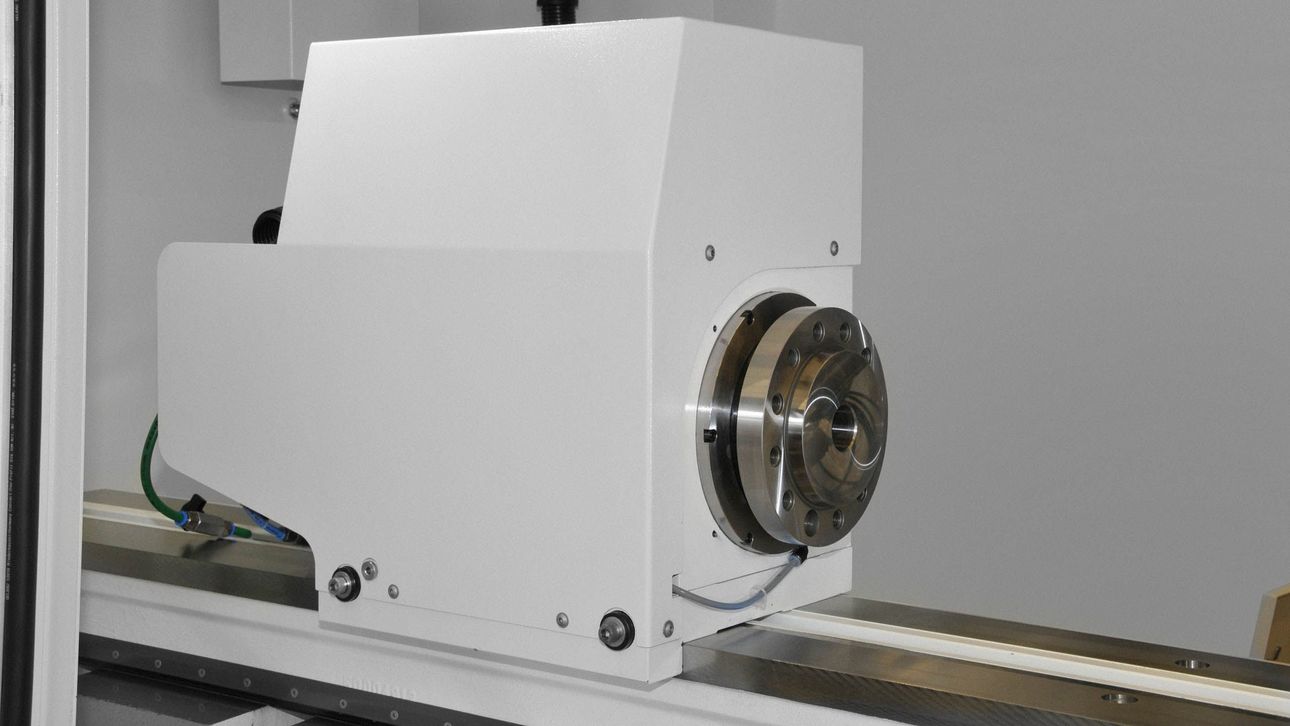

  • C-axis for workhead spindle for form and thread grinding
  • Full enclosure with two sliding doors

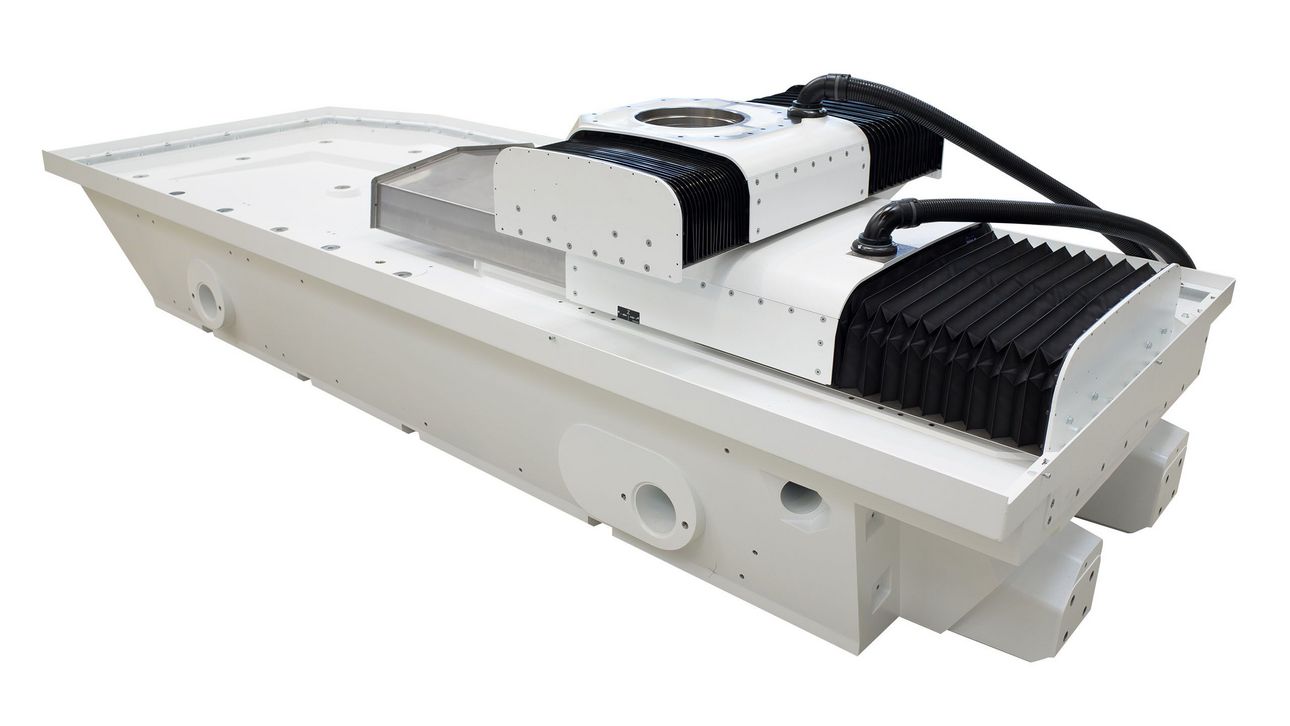

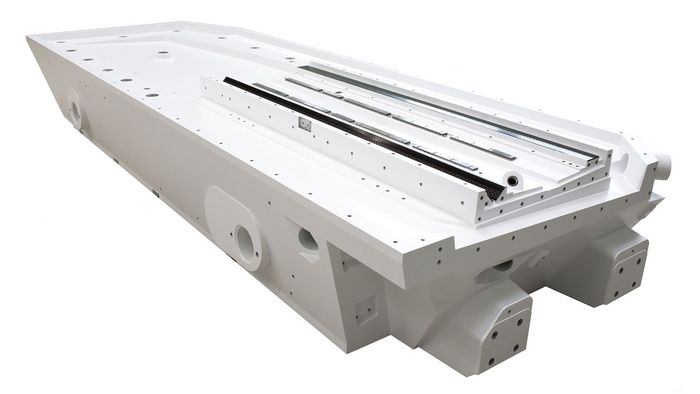

  • Granitan® S103 mineral casting machine base

Software:

  • Very simple operation and programming thanks to StuderWIN
  • Short setup and resetting times e.g. with STUDER Quick-Set
  • Standardized interfaces for loader and peripheral devices
Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 425 mm
Max. Travel Speed X 20'000 mm/min
Max. Travel Z 500 mm
Max. Travel Speed Z 20'000 mm/min

Spindle drive

Max. Spindle Power 18 kW
Max. Number Of Revolutions 120'000 /min
Max. Grinding Wheel Diameter 300 mm
Max. Grinding Wheel Width 32 mm

Swiveling Axes

Swiveling Range B 330 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 0 - 300 mm
Workpiece Diameter 0 - 400 mm
Max. Workpiece Weight 250 kg
Center Height 200 mm

Linear Axes

Max. Travel X 16.7 inch
Max. Travel Speed X 787 inch/min
Max. Travel Z 19.7 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 24 hp
Max. Number Of Revolutions 120'000 rpm
Max. Grinding Wheel Diameter 12 inch
Max. Grinding Wheel Width 1.3 inch

Swiveling Axes

Swiveling Range B 330 deg
Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 0 - 11.8 inch
Workpiece Diameter 0 - 15.7 inch
Max. Workpiece Weight 550 lbs
Center Height 7.9 inch

Linear Axes

Max. Travel X 425 mm
Max. Travel Speed X 20'000 mm/min
Max. Travel Z 500 mm
Max. Travel Speed Z 20'000 mm/min

Spindle drive

Max. Spindle Power 18 kW
Max. Number Of Revolutions 120'000 /min
Max. Grinding Wheel Diameter 300 mm
Max. Grinding Wheel Width 32 mm

Swiveling Axes

Swiveling Range B 330 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 0 - 700 mm
Workpiece Diameter 0 - 400 mm
Max. Workpiece Weight 250 kg
Center Height 200 mm

Linear Axes

Max. Travel X 16.7 inch
Max. Travel Speed X 787 inch/min
Max. Travel Z 19.7 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 24 hp
Max. Number Of Revolutions 120'000 rpm
Max. Grinding Wheel Diameter 12 inch
Max. Grinding Wheel Width 1.3 inch

Swiveling Axes

Swiveling Range B 330 deg
Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 0 - 27.5 inch
Workpiece Diameter 0 - 15.7 inch
Max. Workpiece Weight 550 lbs
Center Height 7.9 inch

Linear Axes

Max. Travel X 425 mm
Max. Travel Speed X 20'000 mm/min
Max. Travel Z 700 mm
Max. Travel Speed Z 20'000 mm/min

Spindle drive

Max. Spindle Power 18 kW
Max. Number Of Revolutions 120'000 /min
Max. Grinding Wheel Diameter 300 mm
Max. Grinding Wheel Width 32 mm

Swiveling Axes

Swiveling Range B 330 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 0 - 1'300 mm
Workpiece Diameter 0 - 400 mm
Max. Workpiece Weight 250 kg
Center Height 200 mm

Linear Axes

Max. Travel X 16.7 inch
Max. Travel Speed X 787 inch/min
Max. Travel Z 27.5 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 24 hp
Max. Number Of Revolutions 120'000 rpm
Max. Grinding Wheel Diameter 12 inch
Max. Grinding Wheel Width 1.3 inch

Swiveling Axes

Swiveling Range B 330 deg
Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 0 - 51.2 inch
Workpiece Diameter 0 - 15.7 inch
Max. Workpiece Weight 550 lbs
Center Height 7.9 inch
Downloads
pdf, 3 MB
Product brochure
S141 - The universal machines for a broad range of internal cylindrical grinding applications.
Download
pdf, 4 MB
StuderControl
Automatic control measurements directly on the machine
Download
