Compact solution for high efficiency
Basic Data

Compact machine concept

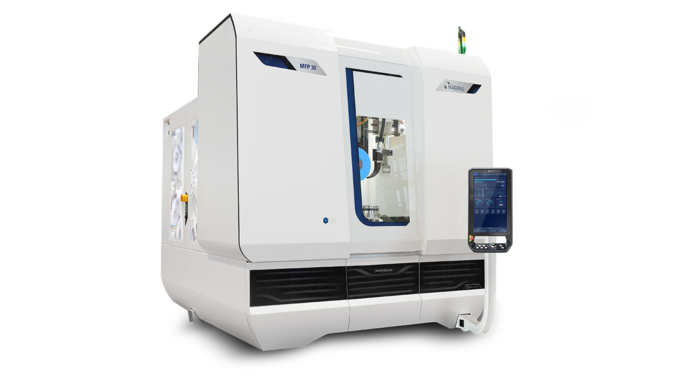

The compact 5 axis grinder is ideal for grinding complex geometries, particularly in the case of guide and rotor blades as well as heat shields for aircraft turbines. The workpieces to be machined are loaded ergonomically directly from the front into the working space. Heavy workpieces with a suspension device can be loaded from the top with a crane. The compact and space-saving design allows optimal use of the existing production area and enables effective production flow.

High efficiency and high torque

The high performance spindle drive enables the combination of different grinding processes, such as creep feed grinding with corundum or CBN grinding. Even at low speeds, full power and high torque remain available. The robust tool holding fixture allow wide machining contours to be realized at high removal rates. The grinding process can be performed with emulsion or oil. The high speed spindle provides optimal machining conditions for challenging grinding and milling processes in one clamping.

Process optimized coolant supply

The 2-axis controlled coolant nozzle enables an optimal coolant supply to the tool or workpiece. Nozzles are available on the grinding support for drilling and milling tools, and a coolant supply can be provided through the spindle.

Thanks to integrated grinding wheel cleaning, the grinding wheel remains clean and sharp for longer periods during grinding. This increases the removal rates while reducing the grinding wheel wear.

Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 500 mm
Max. Travel Speed X 50000 mm/min
Max. Travel Y 450 mm
Max. Travel Speed Y 30000 mm/min
Max. Travel Z 500 mm
Max. Travel Speed Z 30000 mm/min

Spindle drive

Max. Spindle Power 18 kW
Max. Number Of Revolutions 12000 /min
Max. Grinding Wheel Diameter 300 mm
Max. Grinding Wheel Width 60 mm

Swiveling Axes

Swiveling Range A 210 °
Swiveling Range B 360 °
Swiveling Range C 360 °

Workpiece Data

Table Sizes 500 x 500 mm

Linear Axes

Max. Travel X 19.685 inch
Max. Travel Speed X 1969 inch/min
Max. Travel Y 17.717 inch
Max. Travel Speed Y 1181 inch/min
Max. Travel Z 19.685 inch
Max. Travel Speed Z 1181 inch/min

Spindle drive

Max. Spindle Power 24.138 hp
Max. Number Of Revolutions 12000 rpm
Max. Grinding Wheel Diameter 11.811 inch
Max. Grinding Wheel Width 2.362 inch

Swiveling Axes

Swiveling Range A 210 deg
Swiveling Range B 360 deg
Swiveling Range C 360 deg

Workpiece Data

Table Sizes 19.7 x 19.7 inch
