For fully automatic complete measurement of complex tool geometries

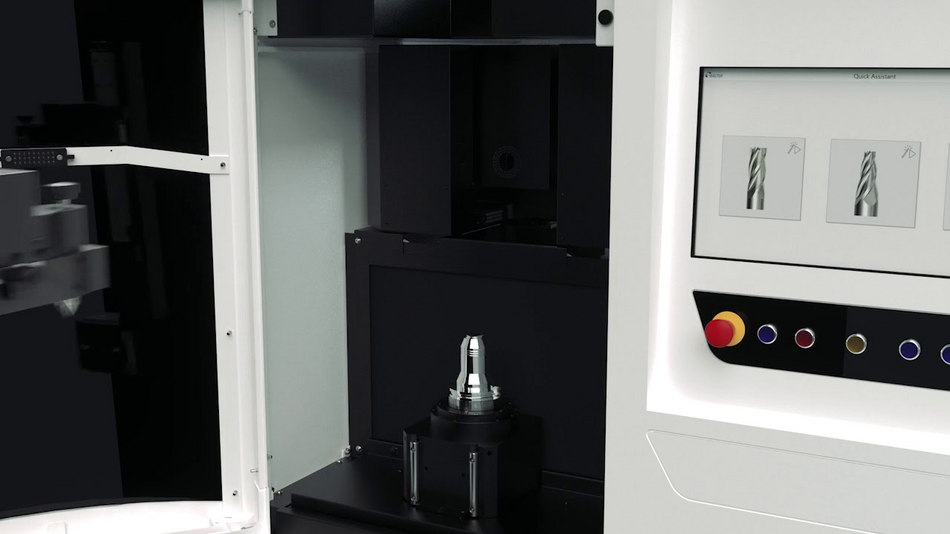

HELICHECK PRO
Basic Data

The fully automated HELICHECK PRO measuring machine is used in the macro area. It can handle tools with a diameter range from1 to 150 mm in the macro area, a machining length up to 330 mm and a tool weight of up to 25 kg. The CNC-based HELICHECK PRO measuring machine is a particularly ideal solution for fully automatic complete measurement of complex geometries. With certified accuracy, it sets standards for ensuring productivity, quality and precision in modern tool production. In automated tool processing, it assumes the key function of in-process "quality control," including built-in tolerance compensation.

NEW: Optional Performance Package with E1=(1.2+L/300)µm!

Features

E1 Value

The E1 value of our measuring machine HELICHECK PRO is (1.4+L/300)µm as standard. With the new optional Performance Package we can even offer you the machine with an E1 value of (1.2+L/300)µm.

Laser marking and tool cleaning

As an option we offer laser marking as well as cleaning of tools in the robot loader. This increases flexibility in the production and final inspection of your tools. The measuring machine is automatically loaded and the cleaning and laser marking takes place outside the work area.

Solid granite base

A solid granite basis has the weight to deliver precision and accuracy. It dampens vibration and is thermally stable. These are the prerequisites for highest measurement accuracy and reliable measurement results.

Optics and mechanics: Uncompromising stability

The choice to forgo moving parts through an optical system delivers increased stability and measurement and repeatability. The fixed cameras are securely protected from dust and from external light in the machine's enclosed measuring space.

Certified accuracy

According to VDI/VDE 2617, the accuracy of a measuring machine is assessed by various measurements at different intervals on a certified calibration standard. WALTER uses a certified stepped mandrel gauge or (optionally) a glass scale for increased accuracy.

Wide range of applications

HELICHECK PRO and HELICHECK PLUS measure rotation-symmetrical tools, production parts, production equipment, including indexable inserts and flat parts, within the stated measurement ranges.

Hardware / Software
  • Numerous adapters
  • Accuracy of roundness
  • Flat objects
Downloads
pdf, 4 MB
Brochure
HELICHECK PRO
Download
pdf, 977 KB
Brochure
HELICHECK with robot loader
Download
pdf, 2 MB
Brochure
METROLOGY CENTER 10.0
Download
pdf, 783 KB
Brochure
Laser marking and tool cleaning
Download
