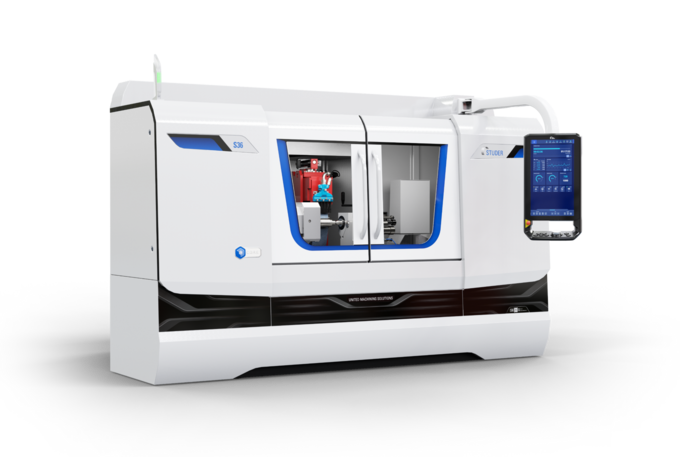

The high-performance machine for automated processes.
Basic Data

The S36 was in part designed to respond to increasing demand for e-mobility production solutions. The machine has a grinding wheel with a diameter of 610 mm (24") and width of 125 mm (4.92") for grinding current and future workpieces in this sector both economically and efficiently. Grinding wheel power of 15 kW (20 HP) and the large grinding wheel enable efficient and safe machining of automotive and hydraulic components in one clamping process with maximum precision.

Images
Hardware / Software

Hardware:

  • External wheelhead with grinding wheel right, 0° / 15° / 30°
  • Frequency-controlled motor grinding spindle for external grinding
  • C axis for workhead
  • Worktable with integrated double T-slot for dressing unit
  • C.O.R.E. Panel
  • Portable control unit (PCU) for setting up close to the grinding process
  • Full enclosure with two sliding doors
  • Granitan® S103 mineral-cast machine base

Software:

  • C.O.R.E. OS operating system
  • Very simple programming thanks to StuderPictogramming
  • Standardized interfaces for loader and peripheral units
  • Flexibly upgradeable with integrated software modules
  • StuderWIN programming software (optional) for creating grinding and dressing programs on an external PC
Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 370 mm
Max. Travel Speed X 15'000 mm/min
Max. Travel Z 800 mm
Max. Travel Speed Z 20'000 mm/min

Spindle drive

Max. Spindle Power 15 kW
Max. Number Of Revolutions 1'500 /min
Max. Grinding Wheel Diameter 610 mm
Max. Grinding Wheel Width 125 mm

Swiveling Axes

Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 0 - 800 mm
Workpiece Diameter 0 - 449 mm
Max. Workpiece Weight 150 kg
Distance Between Centers 650 mm
Center Height 225 mm

Linear Axes

Max. Travel X 14.5 inch
Max. Travel Speed X 590 inch/min
Max. Travel Z 31.5 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 20.5 hp
Max. Number Of Revolutions 1'500 rpm
Max. Grinding Wheel Diameter 24 inch
Max. Grinding Wheel Width 4.92 inch

Swiveling Axes

Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 0 - 31.5 inch
Workpiece Diameter 0 - 17.6 inch
Max. Workpiece Weight 330 lbs
Distance Between Centers 25.6 inch
Center Height 8.8 inch
