The Classical for medium-sized precision components.
Basic Data

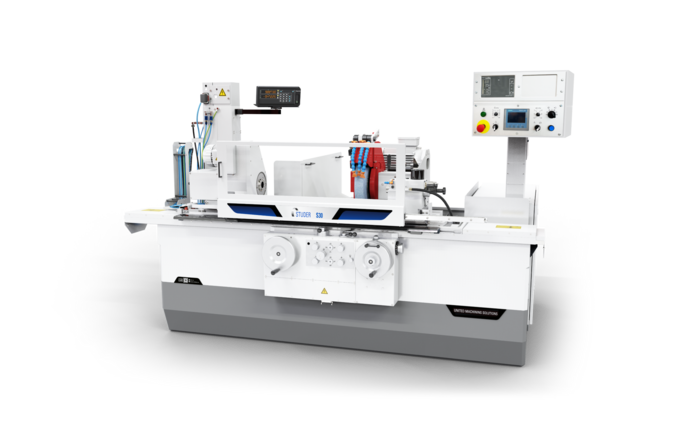

The S30 is a cylindrical grinding machine for medium-sized workpieces in individual and small batch production. It has distances between centres of 650 / 1000 mm and centre heights of 125 / 175 / 225 mm. It can machine workpieces with a maximum weight of 130 kg.

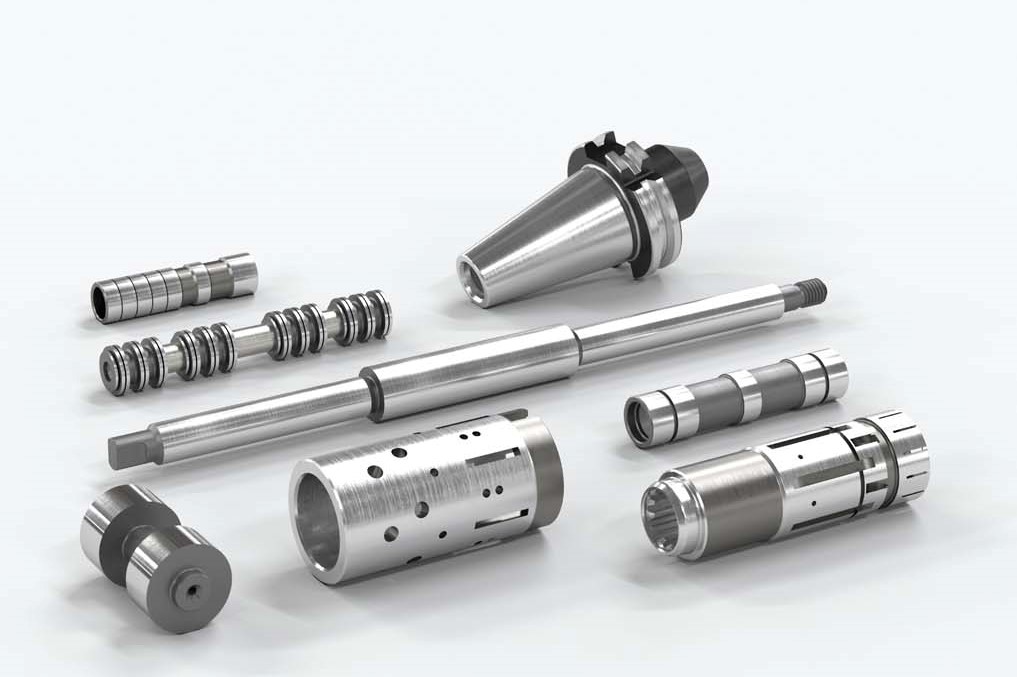

It is suitable for any sector in which medium-sized components are produced. This simple, reasonably priced machine has a tried-and-tested hydraulic infeed system. It is easy to operate and the machine can be reset very quickly. The Granitan® S103 machine bed provides the basis for the fitting of technologically outstanding components to form a cylindrical grinding machine guaranteeing the highest possible precision, performance and reliability levels for many years.

Images
Hardware / Software

Hardware:

  • Optional wheelhead:
    - Turret wheelhead with grinding wheel on the left and right, plus internal grinding attachment (optional) with 5° manual Hirth swivel to a stop of 0° and 180°
    - External wheelhead with grinding wheel on the left
  • Table can be swiveled 10° / 8.5°
  • Workhead fitted with hydrodynamic bearing as standard and a roller-bearing workhead (optional) make it possible to grind between fixed centres as well as with rotating centres
  • Tailstock with adjustable centre pressure and fine adjustment for quick and easy cylindricity correction

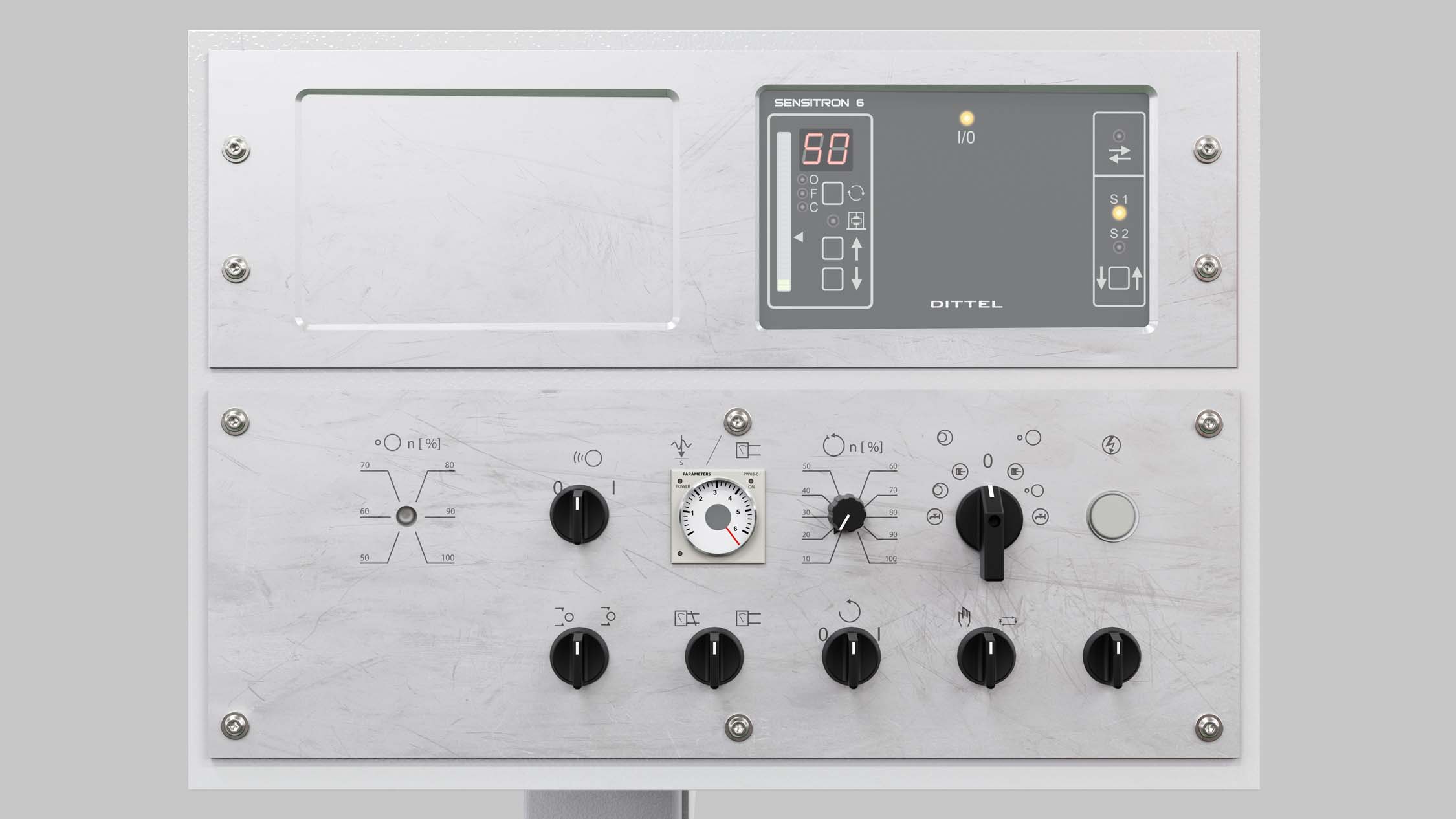

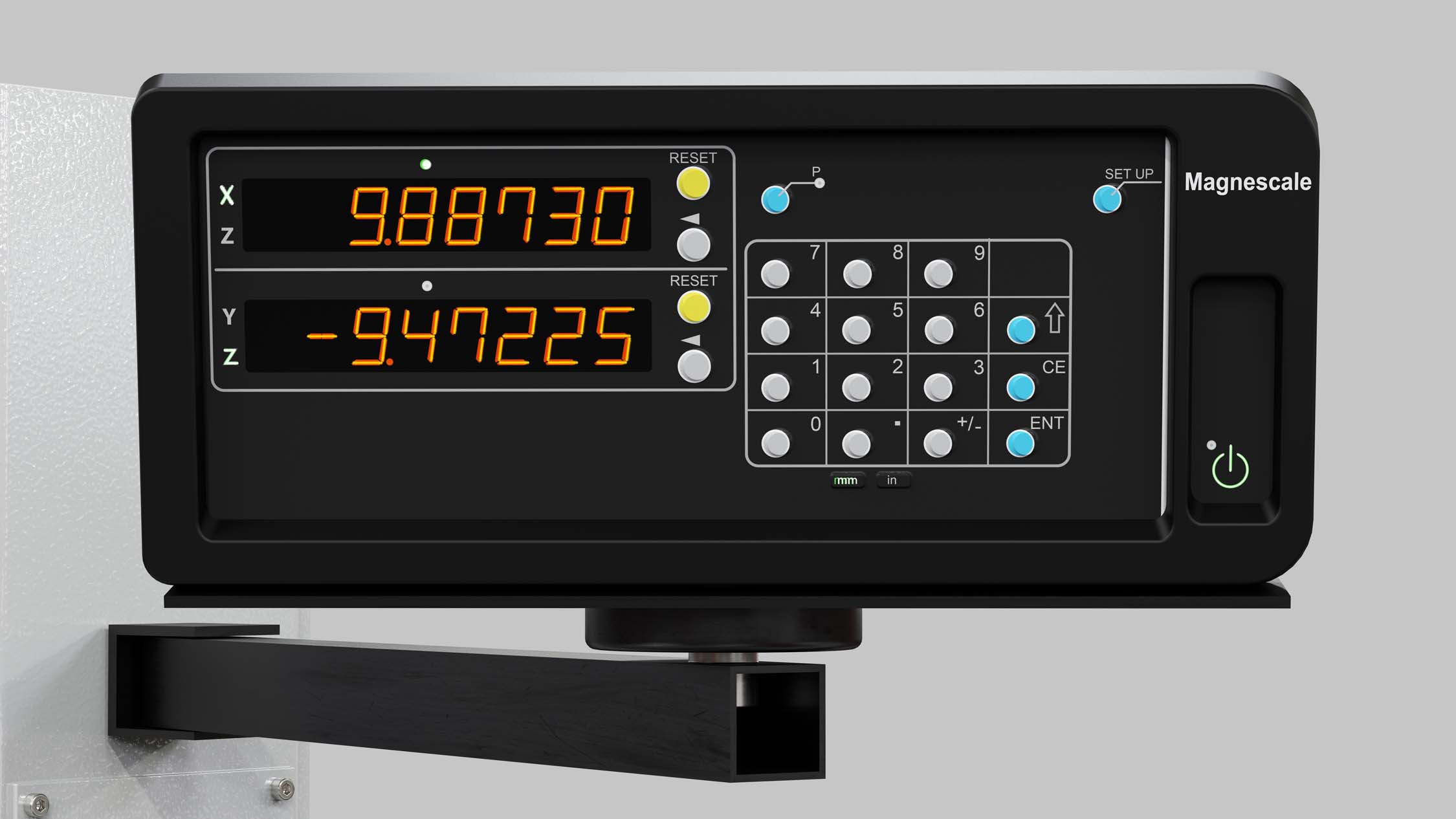

  • Control cabinet connected to the machine. Can be expanded to include in-process gauging and Sensitron
  • Granitan® S103 mineral casting machine base
  • Automatic grinding cycle with automatic cut-out:
    - Rapid infeed
    - Grinding feed 1 and 2
    - Spark-out
  • Rapid retraction of the feed handwheel to the preset grinding allowance
  • Plunge grinding and travel grinding with or without rapid infeed
  • External and internal grinding possible in one clamping
Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 260 mm
Max. Travel Speed X 6 mm/min
Max. Travel Z 700 mm
Max. Travel Speed Z 5'000 mm/min

Spindle drive

Max. Spindle Power 6 kW
Max. Number Of Revolutions 2'110 /min
Max. Grinding Wheel Diameter 500 mm
Max. Grinding Wheel Width 80 mm

Swiveling Axes

Swiveling Range B 180 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 0 - 650 mm
Workpiece Diameter 0 - 449 mm
Max. Workpiece Weight 130 kg
Distance Between Centers 650 mm
Center Height 225 mm

Linear Axes

Max. Travel X 10.2 inch
Max. Travel Speed X 0.24 inch/min
Max. Travel Z 27.5 inch
Max. Travel Speed Z 197 inch/min

Spindle drive

Max. Spindle Power 8 hp
Max. Number Of Revolutions 1'340 rpm
Max. Grinding Wheel Diameter 20 inch
Max. Grinding Wheel Width 3.15 inch

Swiveling Axes

Swiveling Range B 180 deg
Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 0 - 25.6 inch
Workpiece Diameter 0 - 17.6 inch
Max. Workpiece Weight 286 lbs
Distance Between Centers 39.4 inch
Center Height 8.8 inch

Linear Axes

Max. Travel X 260 mm
Max. Travel Speed X 6 mm/min
Max. Travel Z 1'050 mm
Max. Travel Speed Z 5'000 mm/min

Spindle drive

Max. Spindle Power 6 kW
Max. Number Of Revolutions 2'110 /min
Max. Grinding Wheel Diameter 500 mm
Max. Grinding Wheel Width 80 mm

Swiveling Axes

Swiveling Range B 180 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 0 - 1'000 mm
Workpiece Diameter 0 - 449 mm
Max. Workpiece Weight 130 kg
Distance Between Centers 1'000 mm
Center Height 225 mm

Linear Axes

Max. Travel X 10.2 inch
Max. Travel Speed X 0.24 inch/min
Max. Travel Z 41.3 inch
Max. Travel Speed Z 197 inch/min

Spindle drive

Max. Spindle Power 8 hp
Max. Number Of Revolutions 1'340 rpm
Max. Grinding Wheel Diameter 20 inch
Max. Grinding Wheel Width 3.15 inch

Swiveling Axes

Swiveling Range B 180 deg
Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 0 - 39.4 inch
Workpiece Diameter 0 - 17.6 inch
Max. Workpiece Weight 286 lbs
Distance Between Centers 39.4 inch
Center Height 8.8 inch
Downloads
pdf, 3 MB
Product brochure
S30 - The Classical for medium-sized precision components.
Download
