The price hit for a large range of applications.
Basic Data

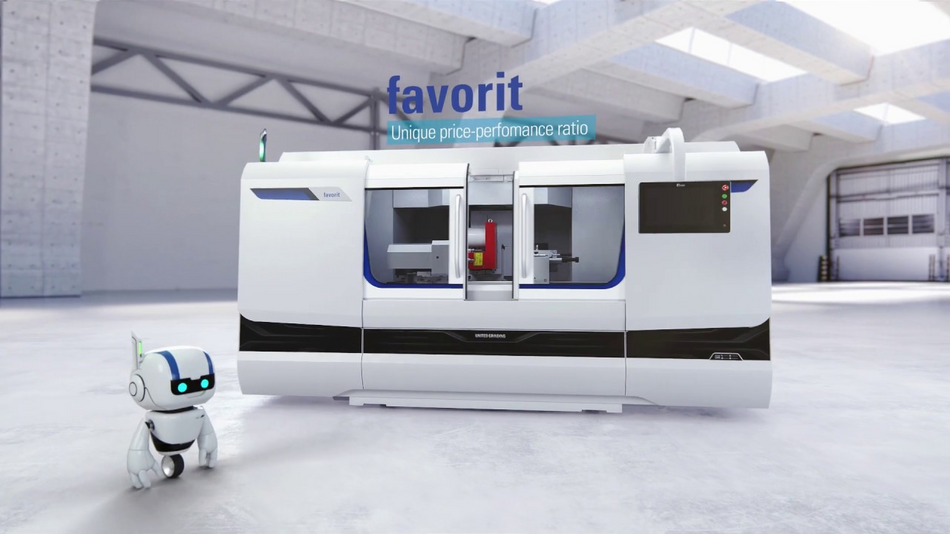

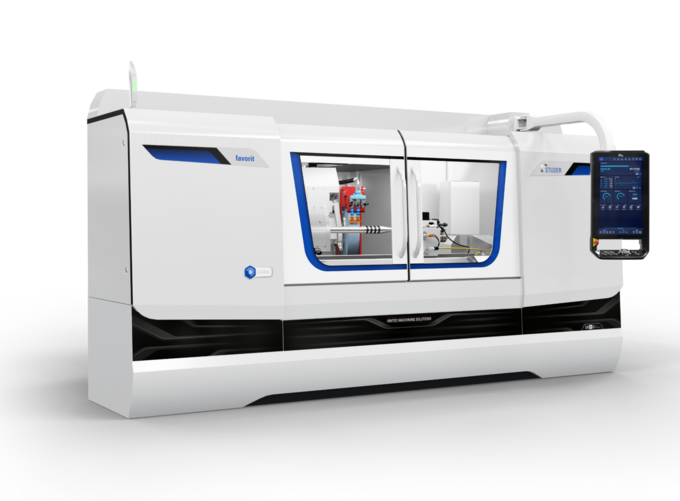

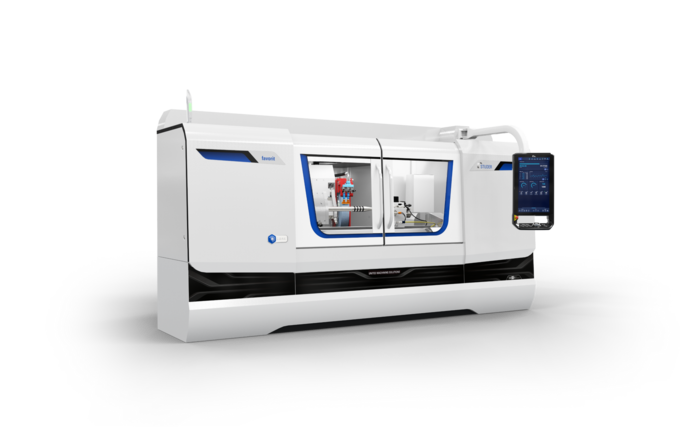

The favorit is a CNC universal cylindrical grinding machine for the individual and batch production of short to long-sized workpieces. It has a distance between centres of 400mm (15.7") / 650mm (25.6") / 1,000mm (40") / 1,600mm (63") and a centre height of 175mm (6.9"). It can machine workpieces with a maximum weight of 150kg (330lbs).

The cylindrical grinding machine can be used in universal applications, and thanks to StuderPictogramming it is easy and quick to program. Your Granitan® S103 mineral-casting machine base largely offsets short-term temperature fluctuations. It can subsequently be easily adapted to other grinding tasks using various accessory kits such as in-process gauging, balancing system, contact detection and length positioning.

Images
Hardware / Software

Hardware:

  • Optional wheelhead:
    - Turret wheelhead with right or left grinding wheel and an internal grinding attachment
    - Automatic swiveling with 3° Hirth serration
    - External wheelhead with grinding wheel on right, 0° / 15° / 30°
  • External and internal grinding possible in one clamping
  • Granitan® S103 mineral casting machine base
  • CE-conform

Software:

  • Extremely easy programming with StuderPictogramming
  • StuderGRIND programming software (optional) for creating grinding and
    dressing programs on an external PC
Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 370 mm
Max. Travel Speed X 15'000 mm/min
Max. Travel Z 500 mm
Max. Travel Speed Z 20'000 mm/min

Spindle drive

Max. Spindle Power 8 kW
Max. Number Of Revolutions 3'200 /min
Max. Grinding Wheel Diameter 508 mm
Max. Grinding Wheel Width 80 mm

Swiveling Axes

Swiveling Range B 240 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 0 - 400 mm
Workpiece Diameter 0 - 349 mm
Max. Workpiece Weight 150 kg
Distance Between Centers 400 mm
Center Height 175 mm

Linear Axes

Max. Travel X 14.6 inch
Max. Travel Speed X 590 inch/min
Max. Travel Z 19.7 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 10 hp
Max. Number Of Revolutions 3'200 rpm
Max. Grinding Wheel Diameter 20 inch
Max. Grinding Wheel Width 3.15 inch

Swiveling Axes

Swiveling Range B 240 deg
Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 0 - 15.7 inch
Workpiece Diameter 0 - 13.75 inch
Max. Workpiece Weight 330 lbs
Distance Between Centers 15.7 inch
Center Height 6.9 inch

Linear Axes

Max. Travel X 370 mm
Max. Travel Speed X 15'000 mm/min
Max. Travel Z 800 mm
Max. Travel Speed Z 20'000 mm/min

Spindle drive

Max. Spindle Power 8 kW
Max. Number Of Revolutions 3'200 /min
Max. Grinding Wheel Diameter 508 mm
Max. Grinding Wheel Width 80 mm

Swiveling Axes

Swiveling Range B 240 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 0 - 650 mm
Workpiece Diameter 0 - 349 mm
Max. Workpiece Weight 150 kg
Distance Between Centers 650 mm
Center Height 175 mm

Linear Axes

Max. Travel X 14.6 inch
Max. Travel Speed X 590 inch/min
Max. Travel Z 31.5 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 10 hp
Max. Number Of Revolutions 3'200 rpm
Max. Grinding Wheel Diameter 20 inch
Max. Grinding Wheel Width 3.15 inch

Swiveling Axes

Swiveling Range B 240 deg
Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 0 - 25.6 inch
Workpiece Diameter 0 - 13.75 inch
Max. Workpiece Weight 330 lbs
Distance Between Centers 25.6 inch
Center Height 6.9 inch

Linear Axes

Max. Travel X 370 mm
Max. Travel Speed X 15'000 mm/min
Max. Travel Z 1'150 mm
Max. Travel Speed Z 20'000 mm/min

Spindle drive

Max. Spindle Power 8 kW
Max. Number Of Revolutions 3'200 /min
Max. Grinding Wheel Diameter 508 mm
Max. Grinding Wheel Width 80 mm

Swiveling Axes

Swiveling Range B 240 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 0 - 1'000 mm
Workpiece Diameter 0 - 349 mm
Max. Workpiece Weight 150 kg
Distance Between Centers 1'000 mm
Center Height 175 mm

Linear Axes

Max. Travel X 14.6 inch
Max. Travel Speed X 590 inch/min
Max. Travel Z 45.3 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 10 hp
Max. Number Of Revolutions 3'200 rpm
Max. Grinding Wheel Diameter 20 inch
Max. Grinding Wheel Width 3.15 inch

Swiveling Axes

Swiveling Range B 240 deg
Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 0 - 39.4 inch
Workpiece Diameter 0 - 13.75 inch
Max. Workpiece Weight 330 lbs
Distance Between Centers 39.4 inch
Center Height 6.9 inch

Linear Axes

Max. Travel X 370 mm
Max. Travel Speed X 15'000 mm/min
Max. Travel Z 1'750 mm
Max. Travel Speed Z 20'000 mm/min

Spindle drive

Max. Spindle Power 8 kW
Max. Number Of Revolutions 3'200 /min
Max. Grinding Wheel Diameter 508 mm
Max. Grinding Wheel Width 80 mm

Swiveling Axes

Swiveling Range B 240 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 0 - 1'600 mm
Workpiece Diameter 0 - 349 mm
Max. Workpiece Weight 150 kg
Distance Between Centers 1'600 mm
Center Height 175 mm

Linear Axes

Max. Travel X 14.6 inch
Max. Travel Speed X 590 inch/min
Max. Travel Z 68.9 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 10 hp
Max. Number Of Revolutions 3'200 rpm
Max. Grinding Wheel Diameter 20 inch
Max. Grinding Wheel Width 3.15 inch

Swiveling Axes

Swiveling Range B 240 deg
Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 0 - 63 inch
Workpiece Diameter 0 - 13.75 inch
Max. Workpiece Weight 330 lbs
Distance Between Centers 63 inch
Center Height 6.9 inch
Downloads
pdf, 4 MB
Product brochure
favorit - The price hit for a large range of applications.
