The practical machine for your specific grinding solution.
Basic Data

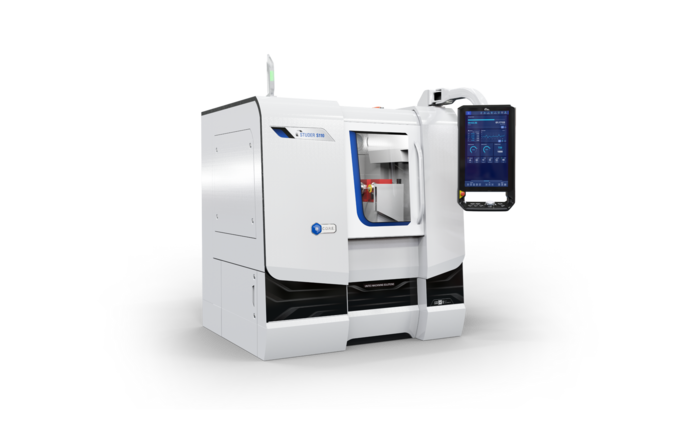

The S110 is a very flexible internal cylindrical grinding machine for machining medium-sized workpieces. The machine has a centre height of 102mm (4") and a grinding length of max. 120mm (4.7").

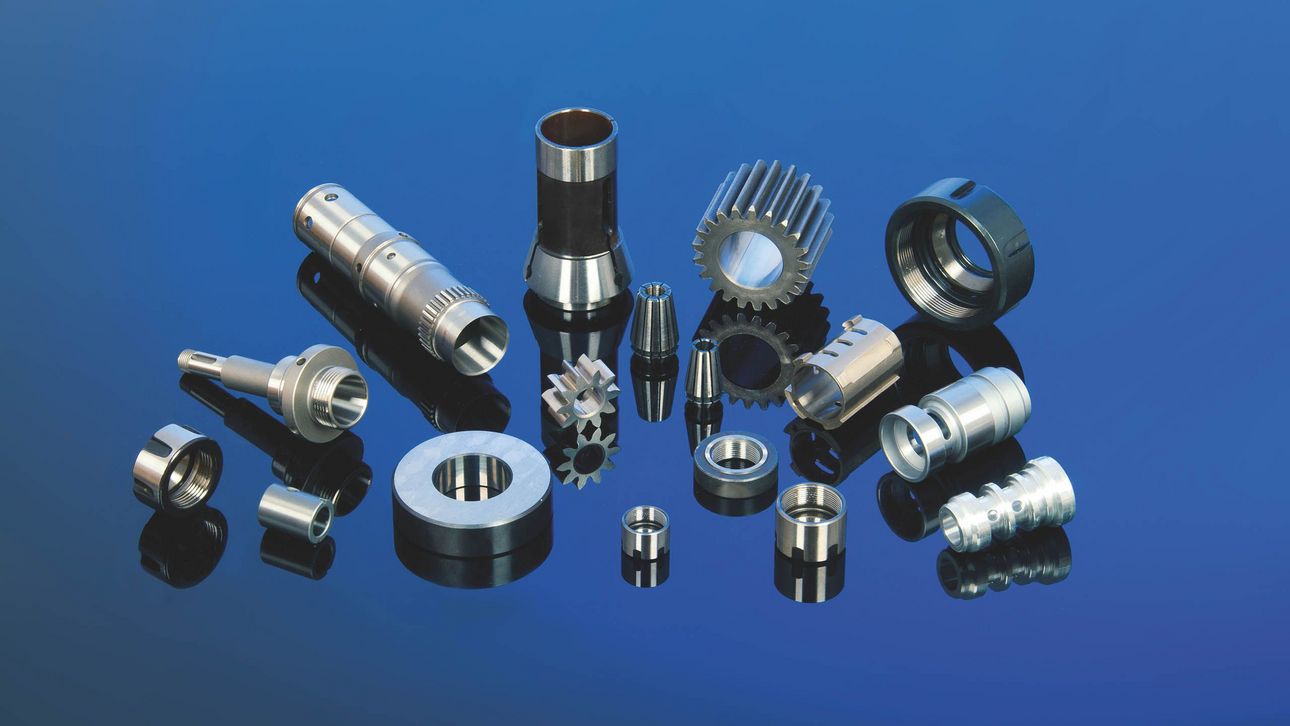

Up to three linearly arranged grinding spindles enable external and internal grinding in a single clamping. S110 is the ideal machine for chuck applications for individual components up to small-batch production. A cost-effective solution for high-precision automated grinding can be achieved with the optional, fully integrated automatic loading and unloading system.

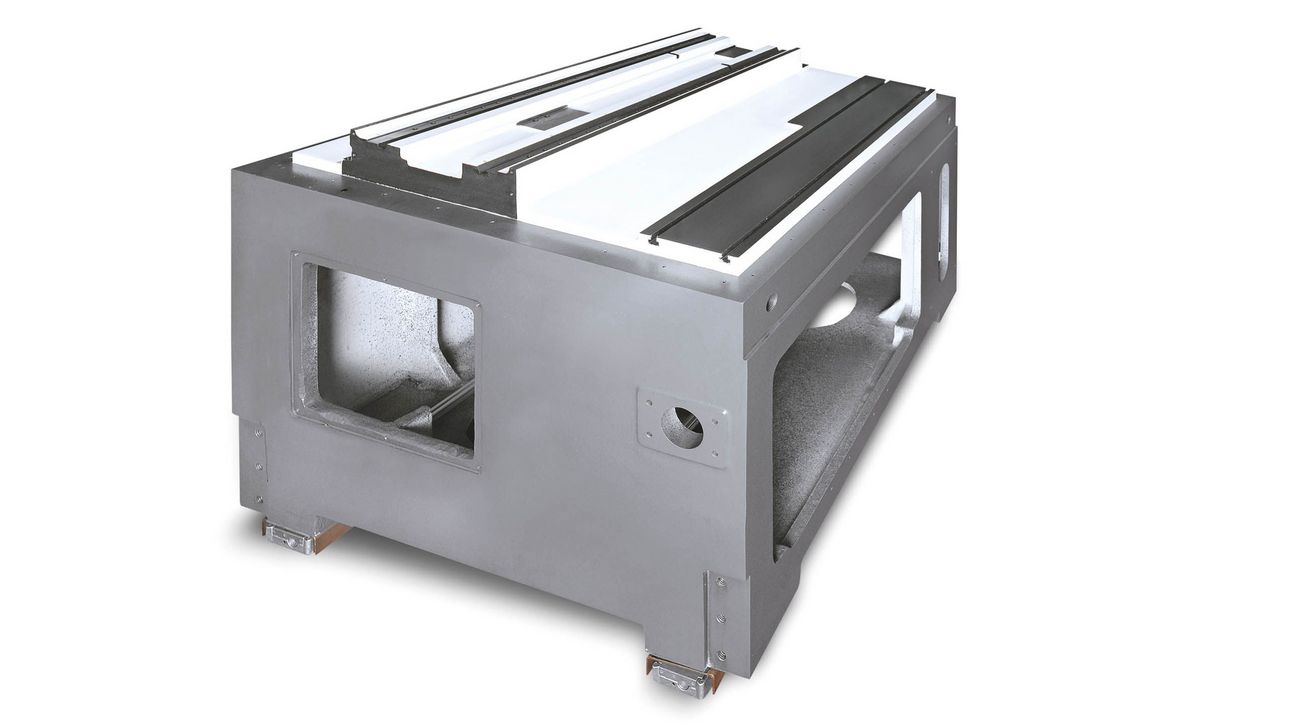

Images
Hardware / Software

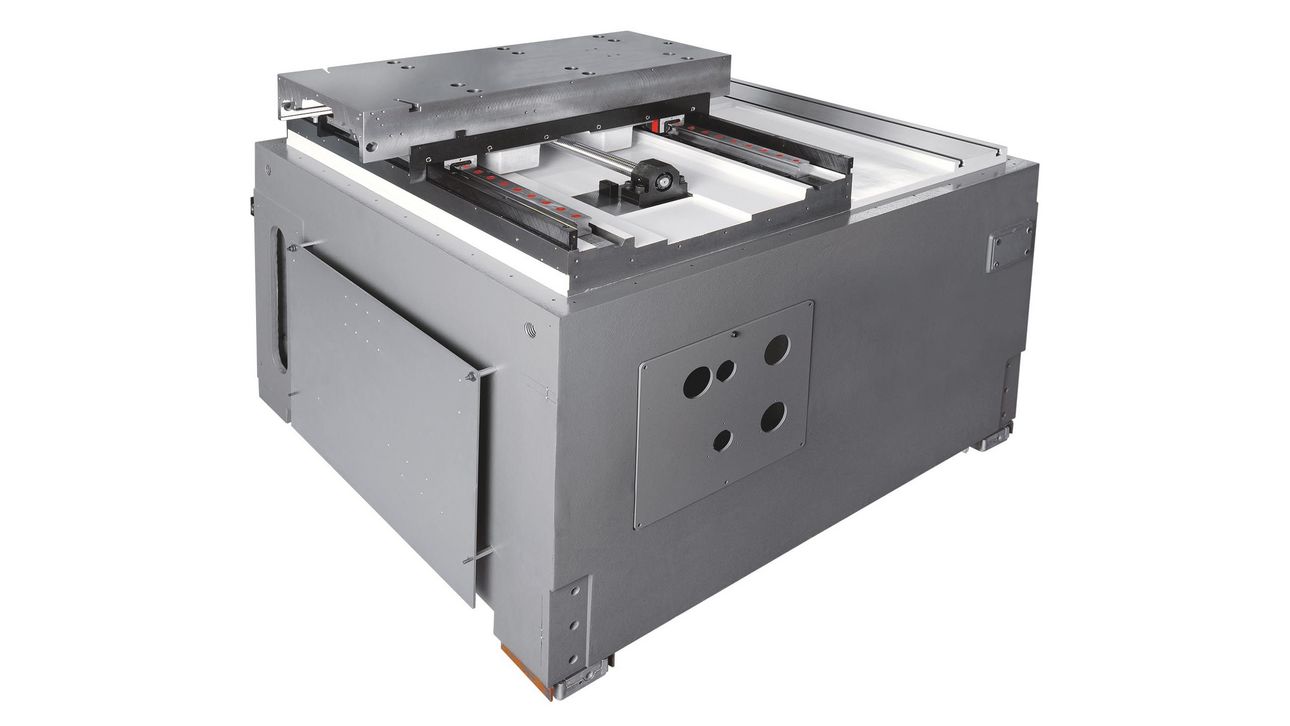

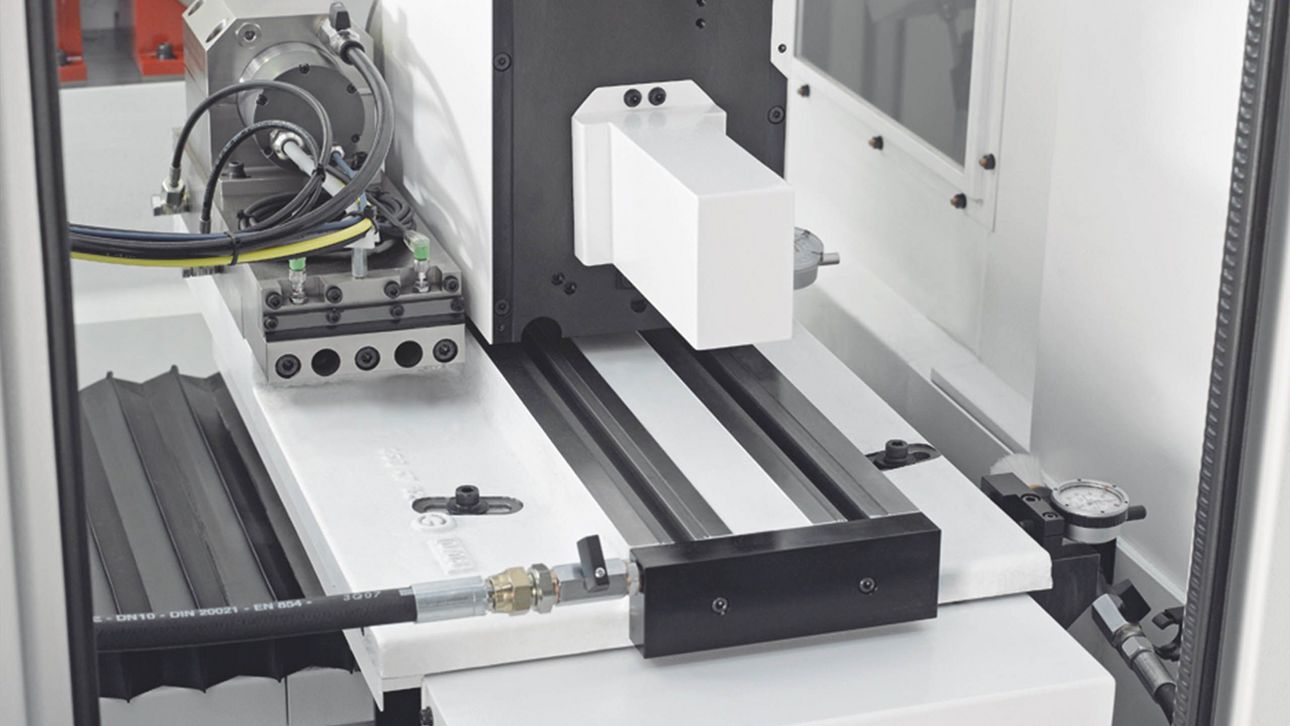

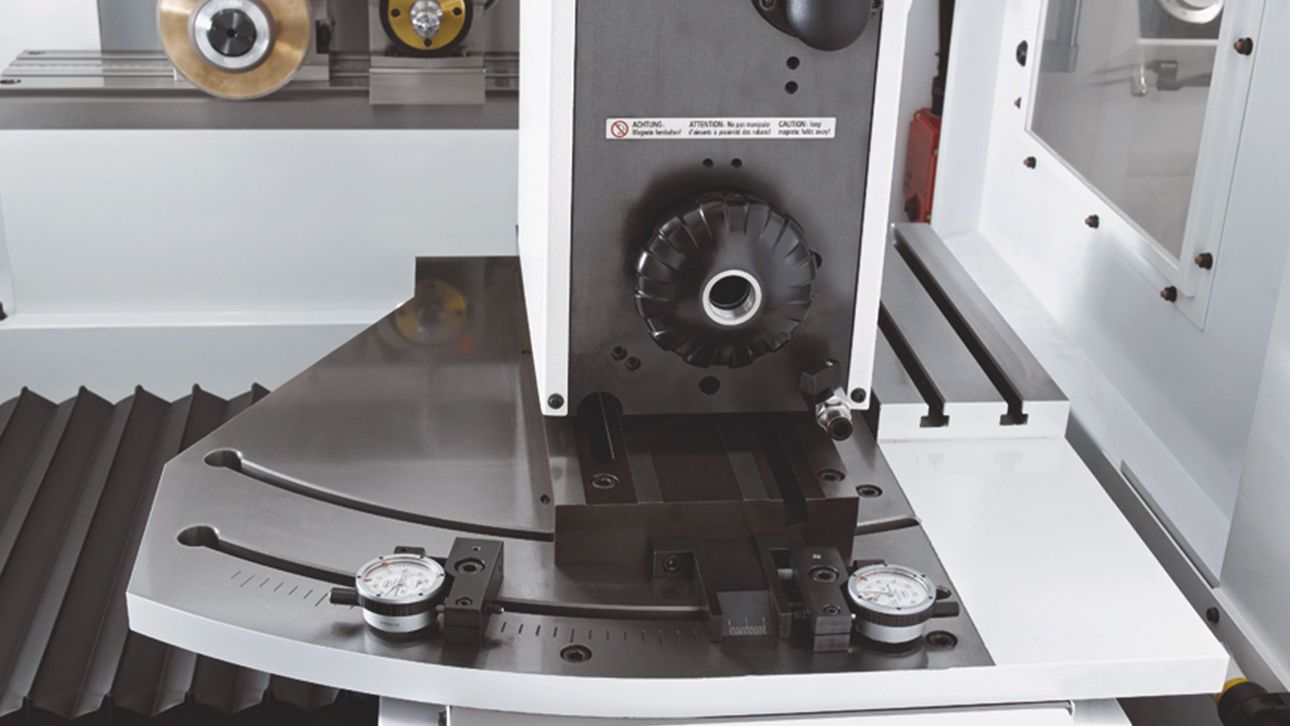

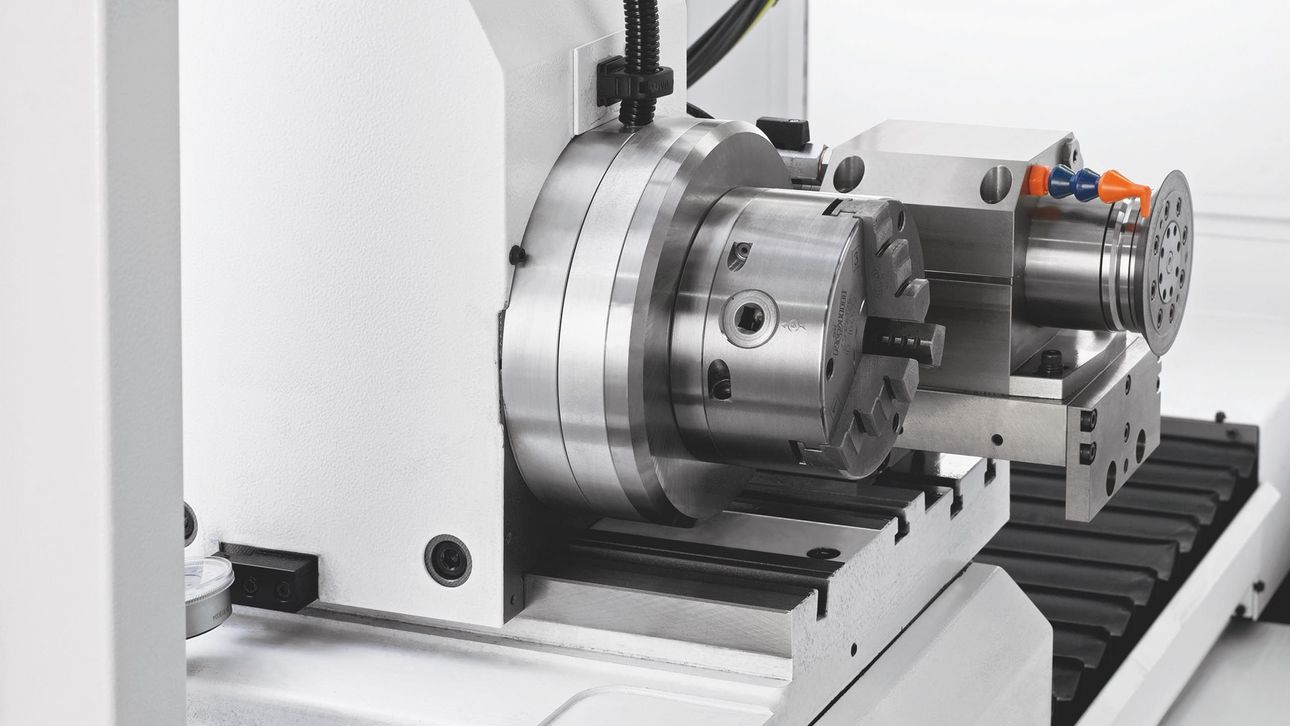

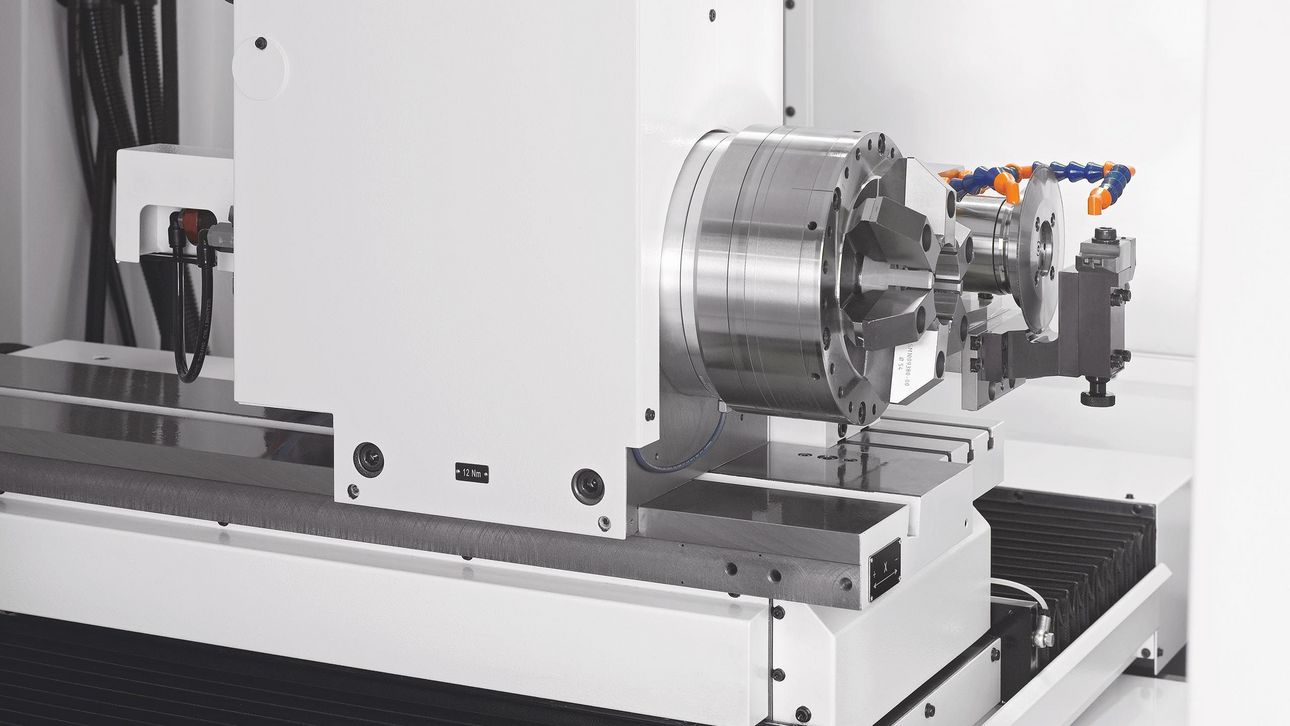

Hardware:

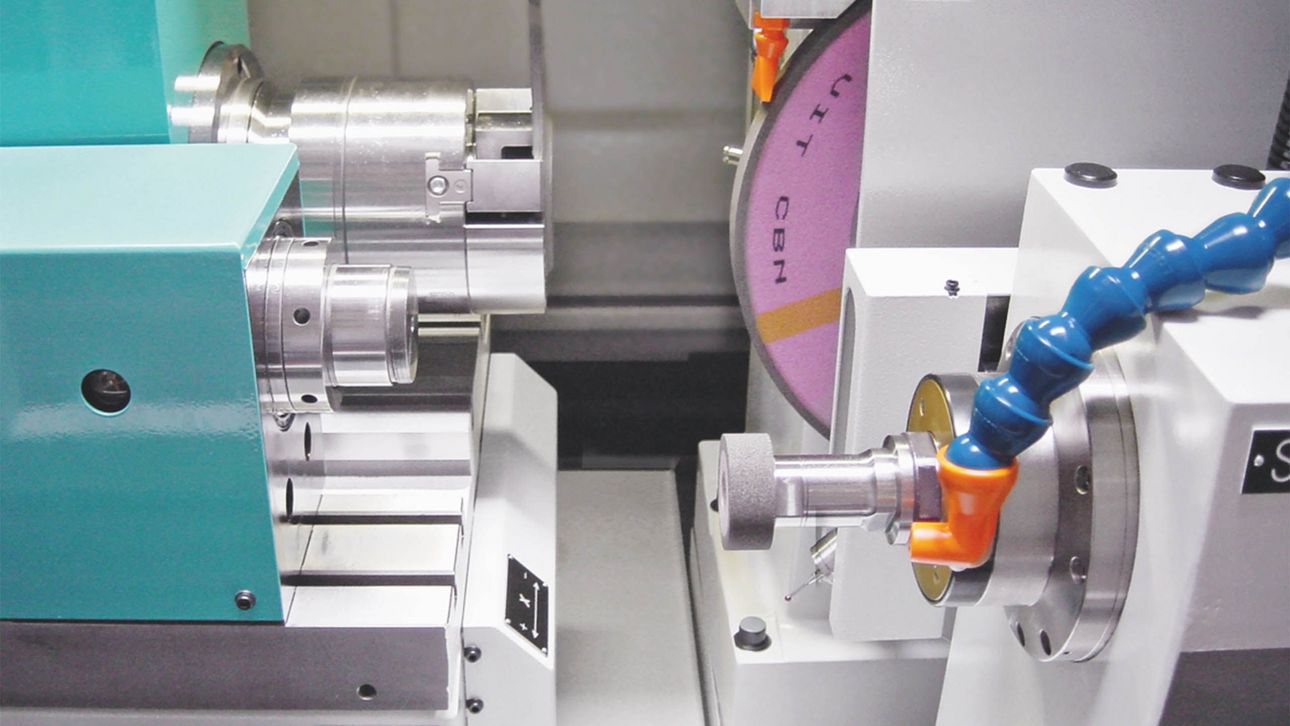

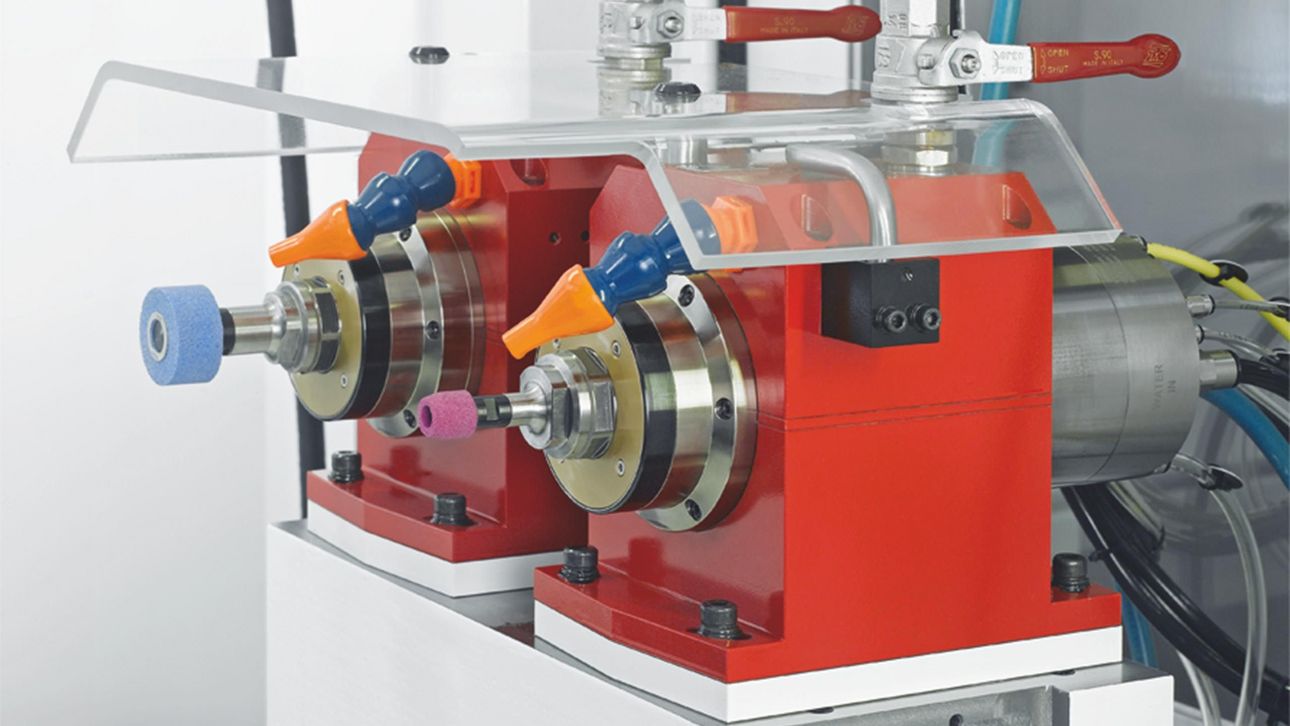

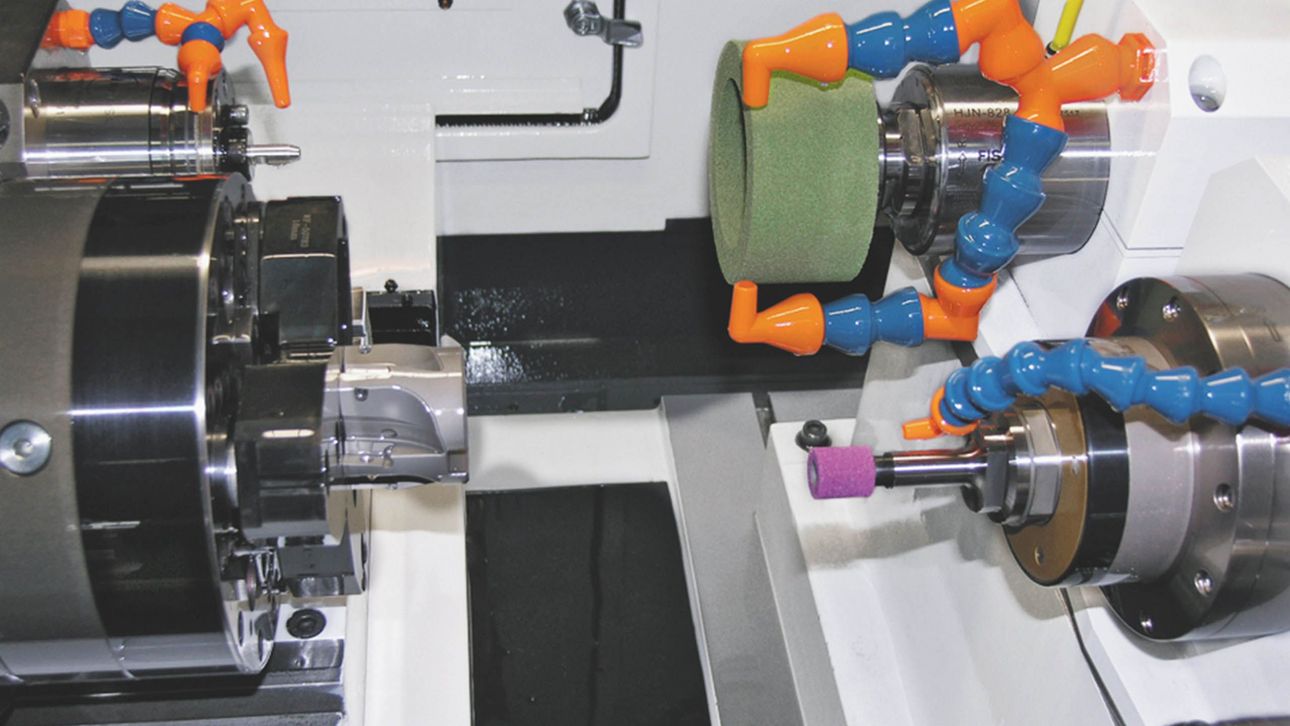

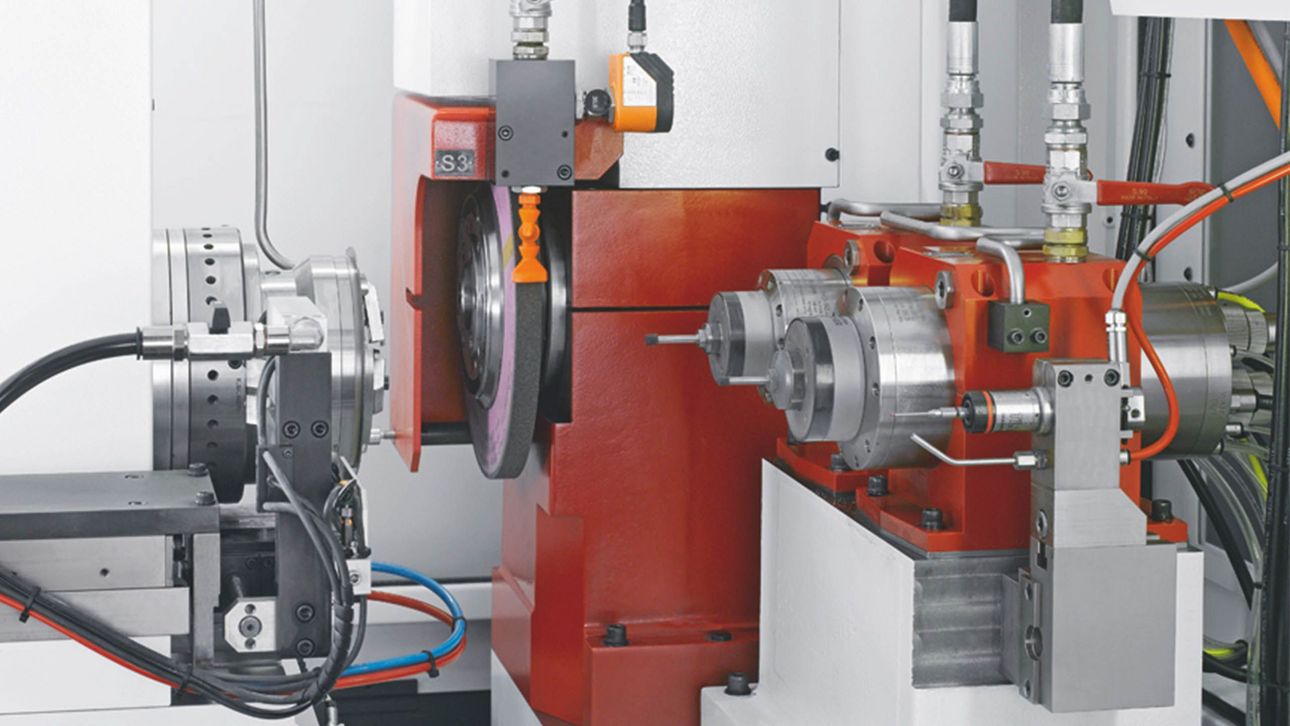

  • Up to three grinding spindles in a linear arrangement

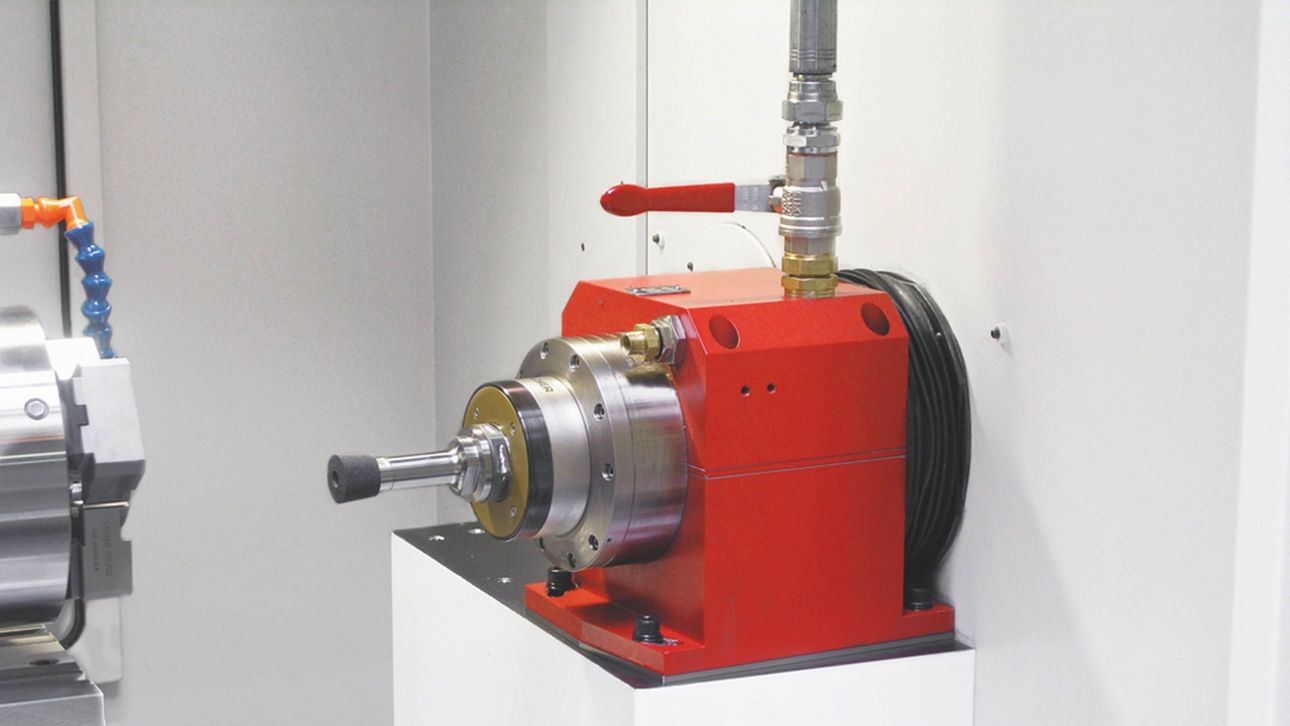

  • HF or belt-driven spindles
  • A grinding spindle can be equipped with an external grinding wheel dia. 300mm (11.8")

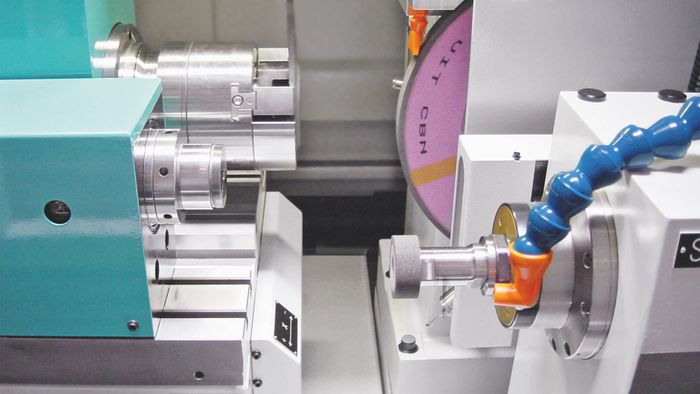

  • External and internal grinding possible in one clamping
  • Full enclosure with sliding door

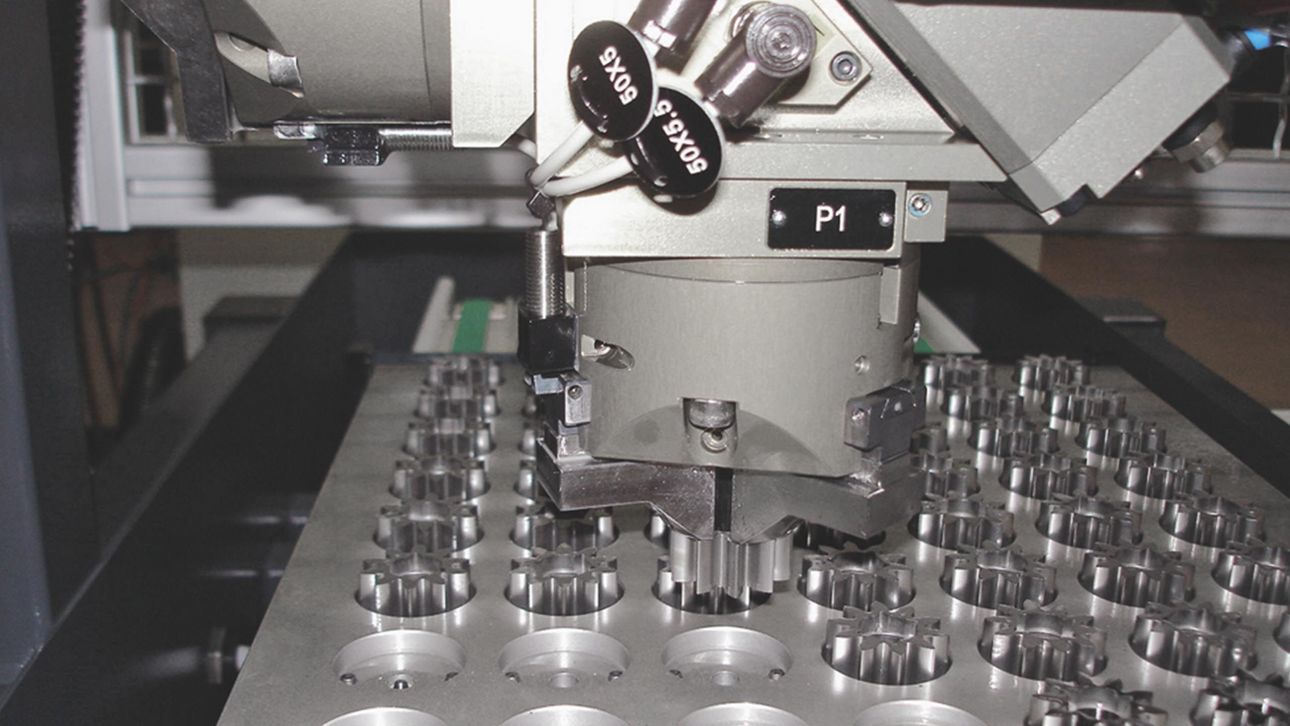

  • Integrated or autonomous loading systems
  • Fanuc Oi-TD / Fanuc 31i-A (with loader)

Software:

  • StuderWIN or StuderSIM simulation software for the creation and simulation of grinding programs on the machine control or on a PC
Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 370 mm
Max. Travel Speed X 15'000 mm/min
Max. Travel Z 200 mm
Max. Travel Speed Z 12'000 mm/min

Spindle drive

Max. Spindle Power 15 kW
Max. Number Of Revolutions 120'000 /min
Max. Grinding Wheel Diameter 300 mm
Max. Grinding Wheel Width 32 mm

Swiveling Axes

Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 0 - 230 mm
Workpiece Diameter 0 - 120 mm
Max. Workpiece Weight 50 kg
Center Height 102 mm

Linear Axes

Max. Travel X 17.7 inch
Max. Travel Speed X 472 inch/min
Max. Travel Z 7.4 inch
Max. Travel Speed Z 472 inch/min

Spindle drive

Max. Spindle Power 20 hp
Max. Number Of Revolutions 120'000 rpm
Max. Grinding Wheel Diameter 12 inch
Max. Grinding Wheel Width 1.3 inch

Swiveling Axes

Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 0 - 9.1 inch
Workpiece Diameter 0 - 4.7 inch
Max. Workpiece Weight 110 lbs
Center Height 4 inch
Downloads
pdf, 4 MB
Product brochure
S110 - The practical machine for your specific grinding solution.
Download
