Huge versatility at the highest performance level
MGC RV
Basic Data

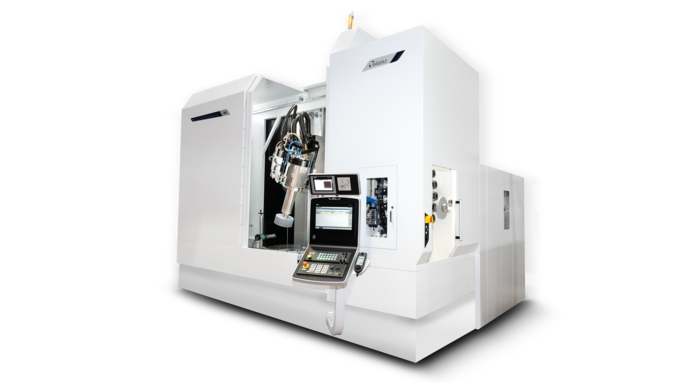

Mägerle MGC with vertical spindle and rotary table – The versatile machine

Versatility with the highest production quality level is the outstanding strength of this vertical grinding machine. It demonstrates its capabilities particularly in the manufacture of bearing rings, where optimum runout characteristics are required for maximum smooth running. Equipped with rotary table and fully automatic tool changer, this vertical grinding machine can master other functions in addition to grinding.

Whether turning, milling, drilling, reaming or boring, this system delivers the same impressive results. The vertically arranged spindle swiveling in the range of ± 50° offers plenty of space for machining a wide variety of workpieces. An interchangeable spindle measuring probe guarantees that each individual workpiece is machined in a single clamping with consistently high perfection.

  • Suitable for multi-process machining
  • Fully automatic tool changer
  • Turning, milling, drilling or drill-finishing in a single clamping
  • Interchangeable spindle measuring probe
Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 1400 mm
Max. Travel Speed X 20000 mm/min
Max. Travel Y 1200 mm
Max. Travel Speed Y 20000 mm/min
Max. Travel Z 500 mm
Max. Travel Speed Z 20000 mm/min

Spindle drive

Max. Spindle Power 30 kW
Max. Number Of Revolutions 15000 /min
Max. Grinding Wheel Diameter 300 mm
Max. Grinding Wheel Width 150 mm

Swiveling Axes

Swiveling Range B 360 °
Swiveling Range C 110 °

Workpiece Data

Rotary Table Diameter 1200 mm

Linear Axes

Max. Travel X 55.118 inch
Max. Travel Speed X 787 inch/min
Max. Travel Y 47.244 inch
Max. Travel Speed Y 787 inch/min
Max. Travel Z 19.685 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 40.230 hp
Max. Number Of Revolutions 15000 rpm
Max. Grinding Wheel Diameter 11.811 inch
Max. Grinding Wheel Width 5.906 inch

Swiveling Axes

Swiveling Range B 360 deg
Swiveling Range C 110 deg

Workpiece Data

Rotary Table Diameter 47.240 inch

Linear Axes

Max. Travel X 2100 mm
Max. Travel Speed X 20000 mm/min
Max. Travel Y 1200 mm
Max. Travel Speed Y 20000 mm/min
Max. Travel Z 500 mm
Max. Travel Speed Z 20000 mm/min

Spindle drive

Max. Spindle Power 30 kW
Max. Number Of Revolutions 15000 /min
Max. Grinding Wheel Diameter 400 mm
Max. Grinding Wheel Width 200 mm

Swiveling Axes

Swiveling Range B 360 °
Swiveling Range C 110 °

Workpiece Data

Rotary Table Diameter 1500 mm

Linear Axes

Max. Travel X 82.677 inch
Max. Travel Speed X 787 inch/min
Max. Travel Y 47.244 inch
Max. Travel Speed Y 787 inch/min
Max. Travel Z 19.685 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 40.230 hp
Max. Number Of Revolutions 15000 rpm
Max. Grinding Wheel Diameter 15.748 inch
Max. Grinding Wheel Width 7.874 inch

Swiveling Axes

Swiveling Range B 360 deg
Swiveling Range C 110 deg

Workpiece Data

Rotary Table Diameter 59.050 inch

Linear Axes

Max. Travel X 2600 mm
Max. Travel Speed X 20000 mm/min
Max. Travel Y 1200 mm
Max. Travel Speed Y 20000 mm/min
Max. Travel Z 500 mm
Max. Travel Speed Z 20000 mm/min

Spindle drive

Max. Spindle Power 30 kW
Max. Number Of Revolutions 15000 /min
Max. Grinding Wheel Diameter 400 mm
Max. Grinding Wheel Width 200 mm

Swiveling Axes

Swiveling Range B 360 °
Swiveling Range C 110 °

Workpiece Data

Rotary Table Diameter 2000 mm

Linear Axes

Max. Travel X 102.362 inch
Max. Travel Speed X 787 inch/min
Max. Travel Y 47.244 inch
Max. Travel Speed Y 787 inch/min
Max. Travel Z 19.685 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 40.230 hp
Max. Number Of Revolutions 15000 rpm
Max. Grinding Wheel Diameter 15.748 inch
Max. Grinding Wheel Width 7.874 inch

Swiveling Axes

Swiveling Range B 360 deg
Swiveling Range C 110 deg

Workpiece Data

Rotary Table Diameter 78.740 inch
