HELITRONIC G 200

Basic Data

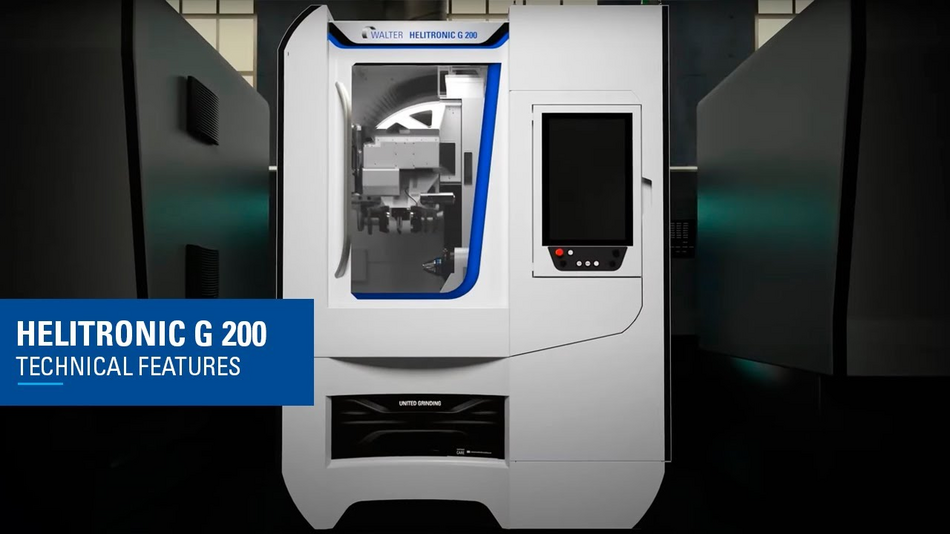

The HELITRONIC G 200 tool grinding machine impresses with an innovative machine concept with a footprint of less than 2,3 sqm. The machine offers tool grinding at its best: Production and re-sharpening of rotationally symmetrical tools in the diameter range of 1 to 125 mm, with a maximum tool length of 235 mm and a tool weight up to 12 kg. Maximum grinding wheel diameter is 150 mm.

Features

C-frame construction

The C-frame construction and the mineral cast bed with its high weight and extreme rigidity converts the high dynamic performance of the digital drives into low-vibration grinding precision.

Belt-driven spindle

The belt-driven spindle with two ends can take up to six grinding wheels. The different grinding wheel sets are allocated to the relevant spindle along with the wheel measurement data.

"Top loader" option

This space-saving and inexpensive automation solution is integrated directly into the machine envelope. Featuring an automatic teaching capability setup times are reduced to a minimum. Depending on the tool diameter, the Top loader offers a maximum of 500 places for tools.

Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 305 mm
Max. Travel Speed X 15.000 mm/min
Max. Travel Y 218 mm
Max. Travel Speed Y 15.000 mm/min
Max. Travel Z 475 mm
Max. Travel Speed Z 15.000 mm/min

Spindle drive

Max. Spindle Power 9 kW
Max. Number Of Revolutions 10.500 /min
Max. Grinding Wheel Diameter 150 mm

Swiveling Axes

Swiveling Range C 200 °

Workpiece Data

Workpiece Length 0 - 195 / 235 mm
Workpiece Diameter 1 (3) - 16 (125) mm
Max. Workpiece Weight 12 kg

Linear Axes

Max. Travel X 12.007 inch
Max. Travel Speed X 591 inch/min
Max. Travel Y 8.582 inch
Max. Travel Speed Y 591 inch/min
Max. Travel Z 18.700 inch
Max. Travel Speed Z 591 inch/min

Spindle drive

Max. Spindle Power 12,237 hp
Max. Number Of Revolutions 10,500 rpm
Max. Grinding Wheel Diameter 5.906 inch

Swiveling Axes

Swiveling Range C 200 deg

Workpiece Data

Workpiece Length 0 - 7.677 / 9.252 inch
Workpiece Diameter 0.039 (0.630) - 0.118 (4.921) inch
Max. Workpiece Weight 26,48 lbs
