The universal solution for
every production.
Basic Data

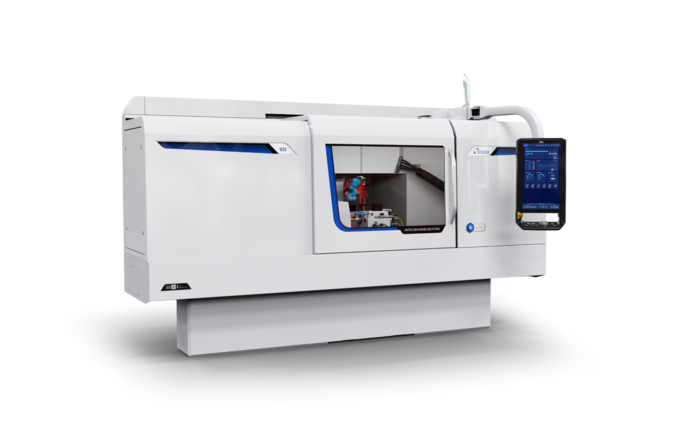

Offering excellent value, it is the ideal choice – equally suited to flexible one-off production in small workshops and efficient high-volume production in large-scale operations. Compact in design, versatile in use, and intuitive to operate – the S23 universal cylindrical grinding machine impresses with outstanding precision and maximum productivity.

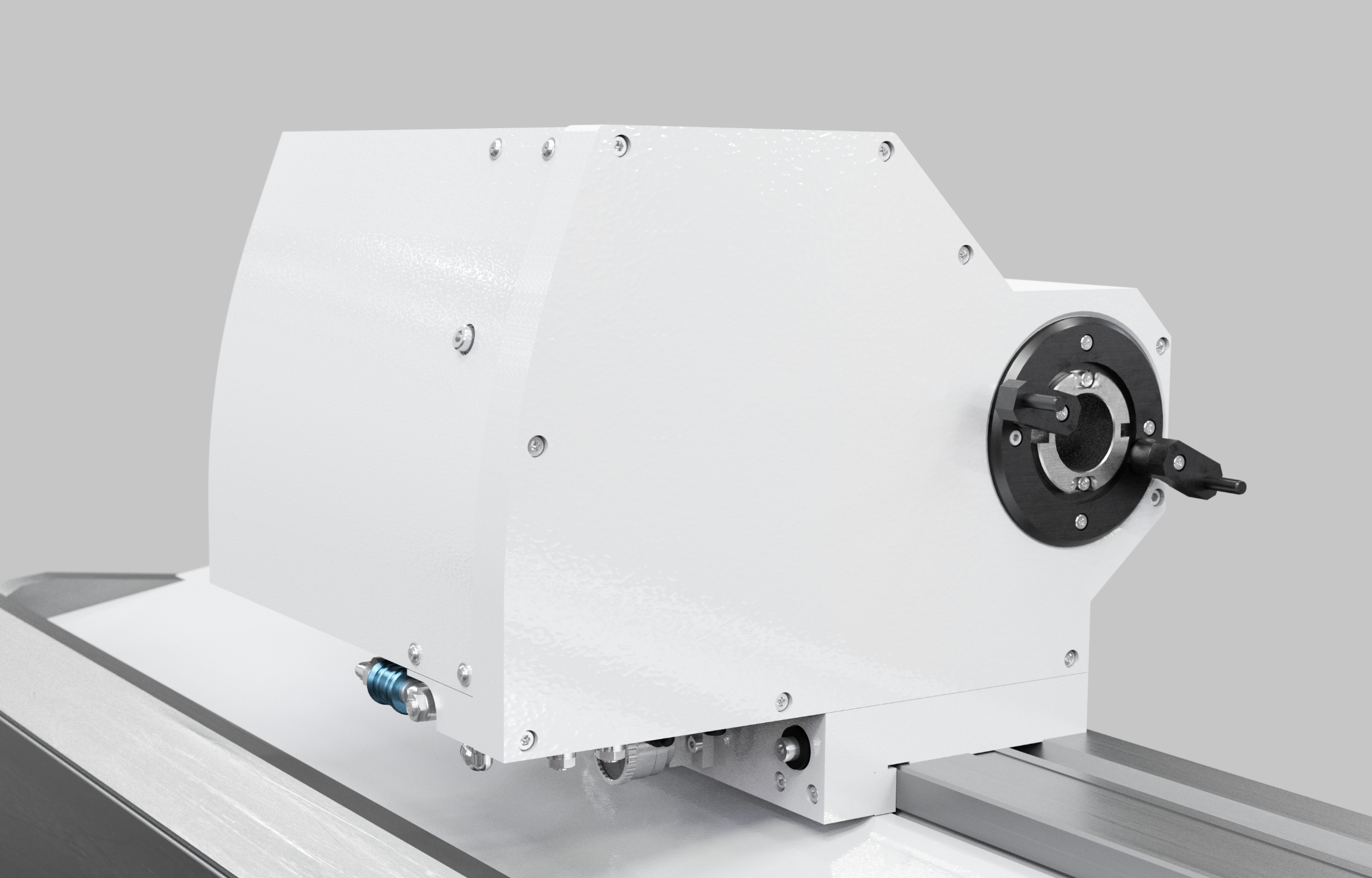

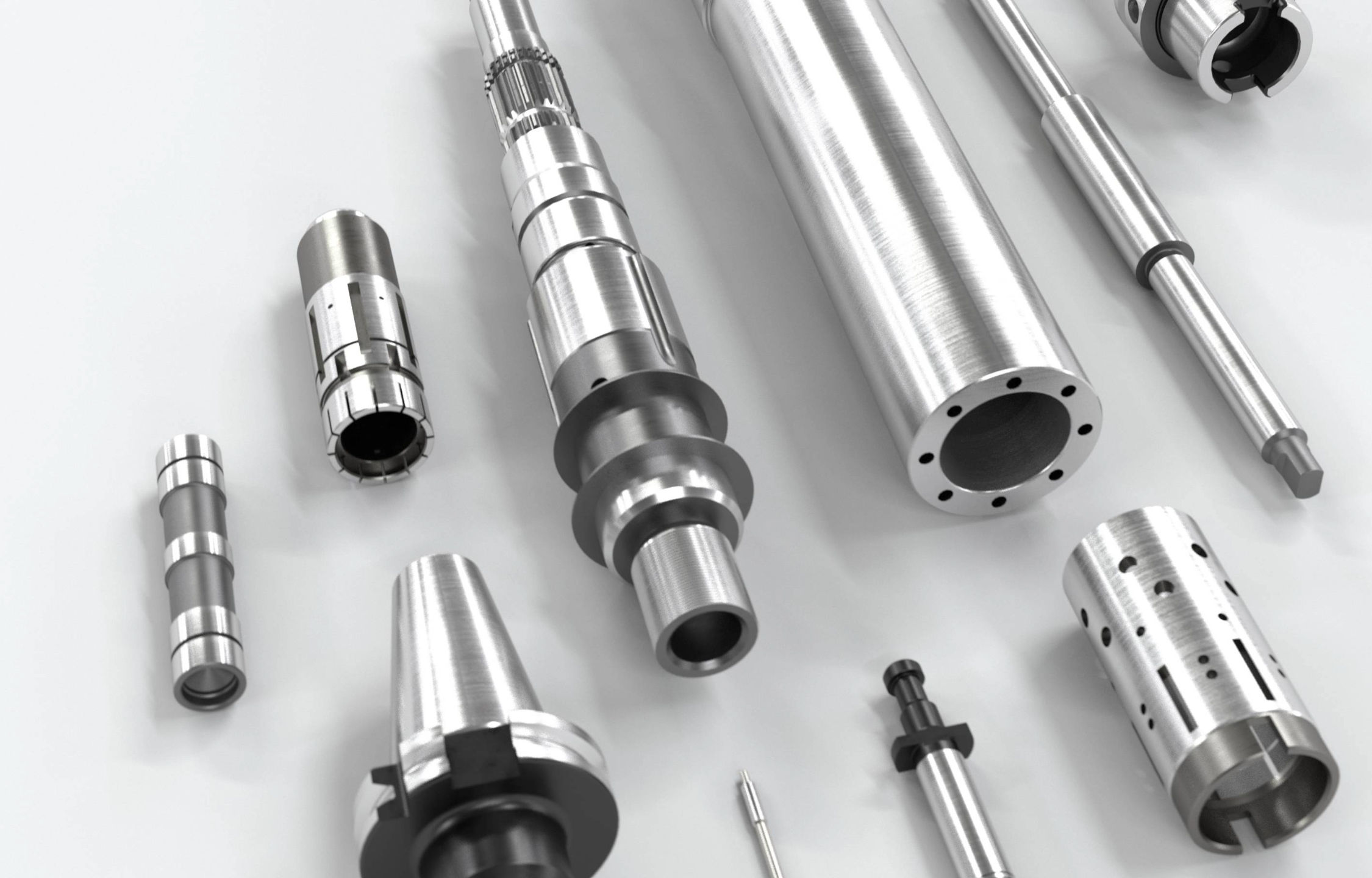

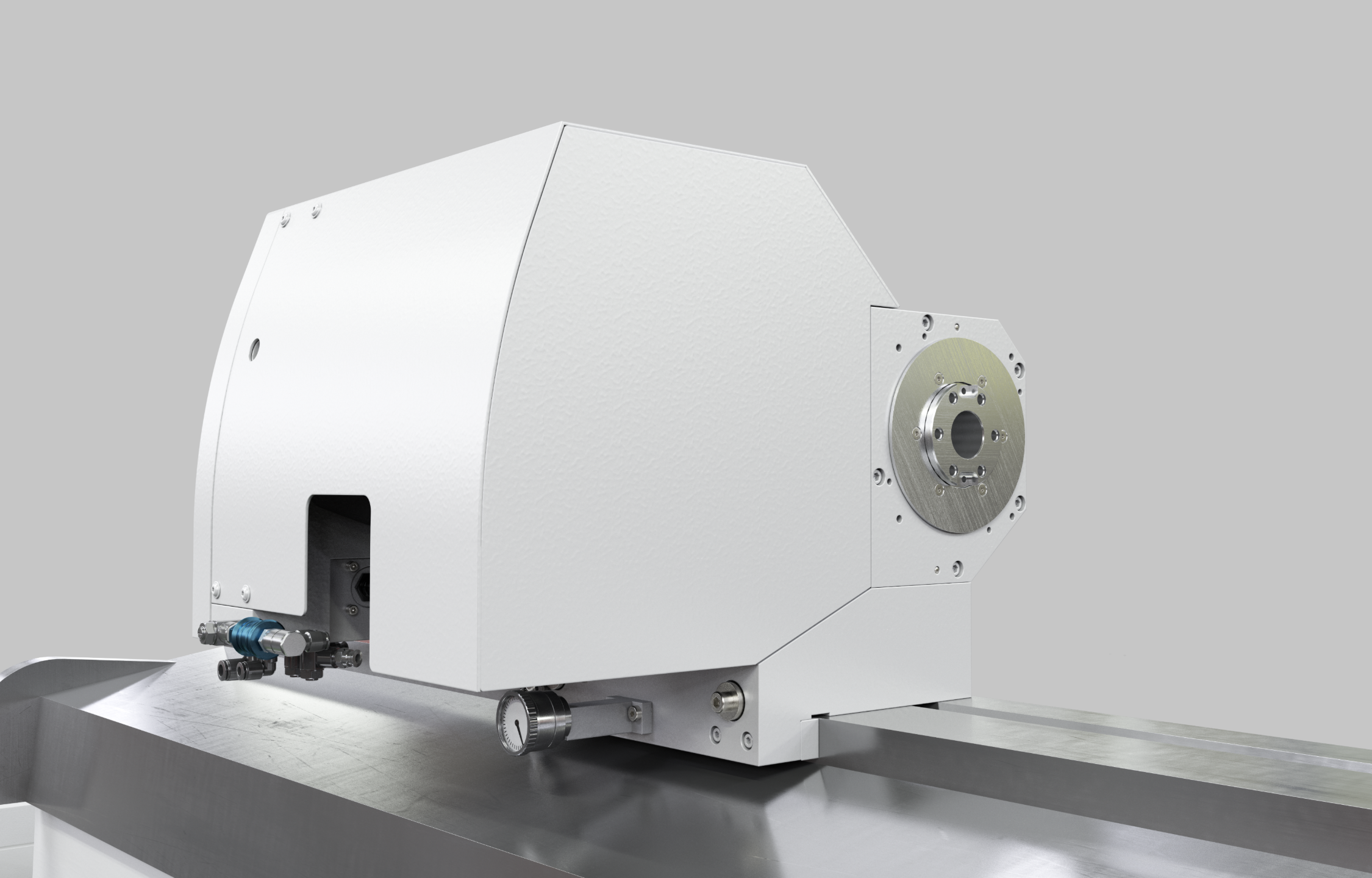

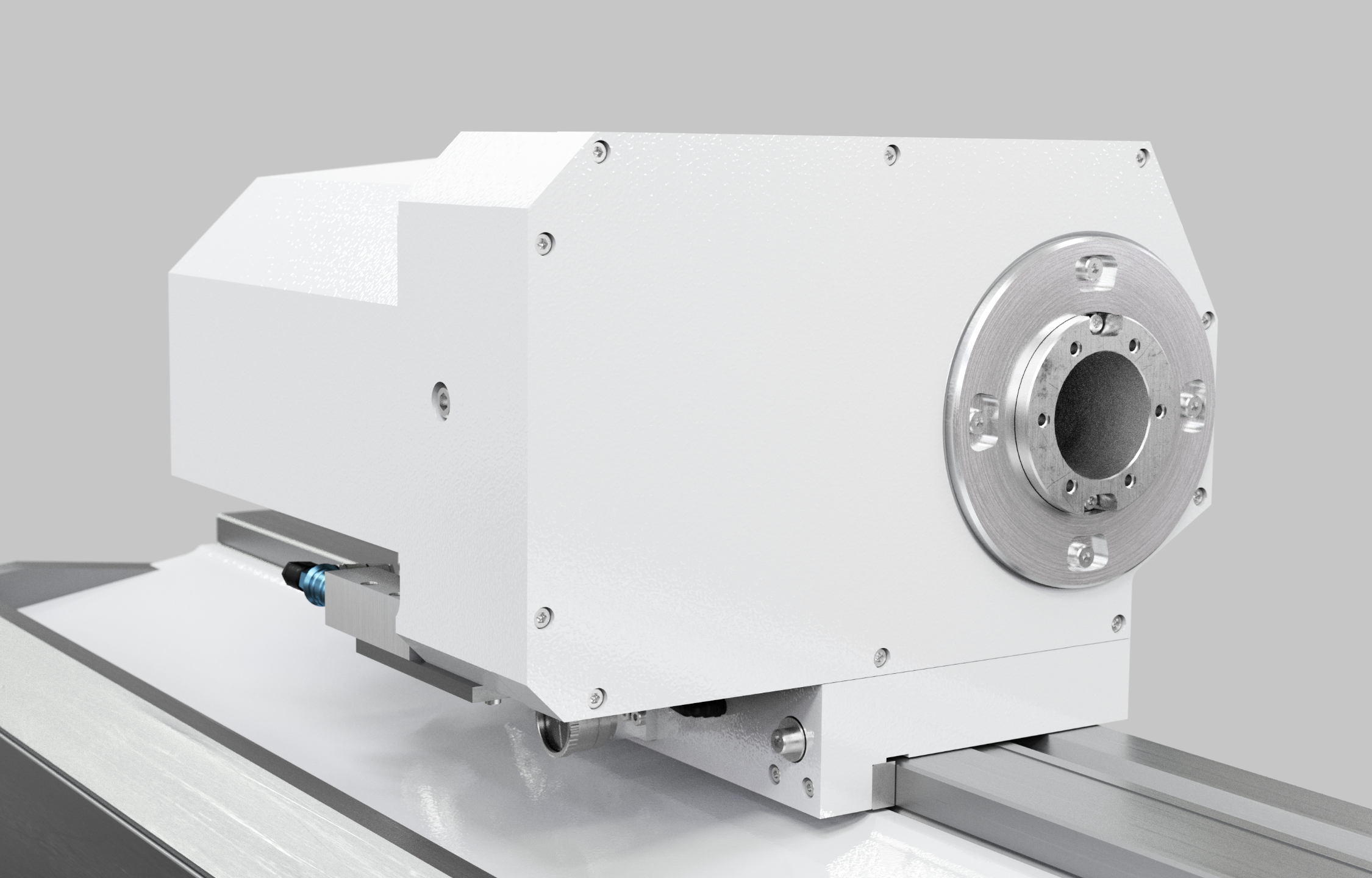

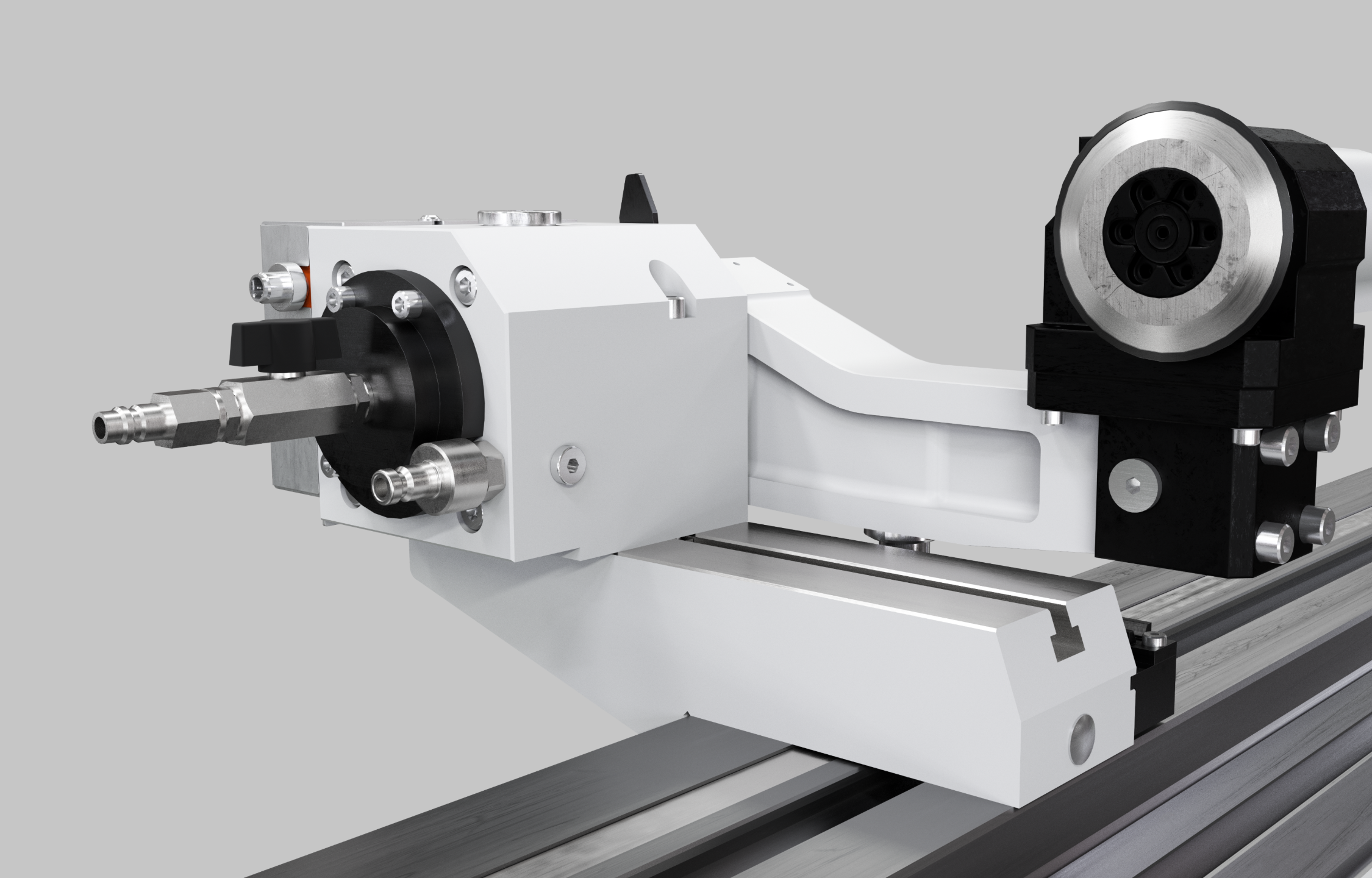

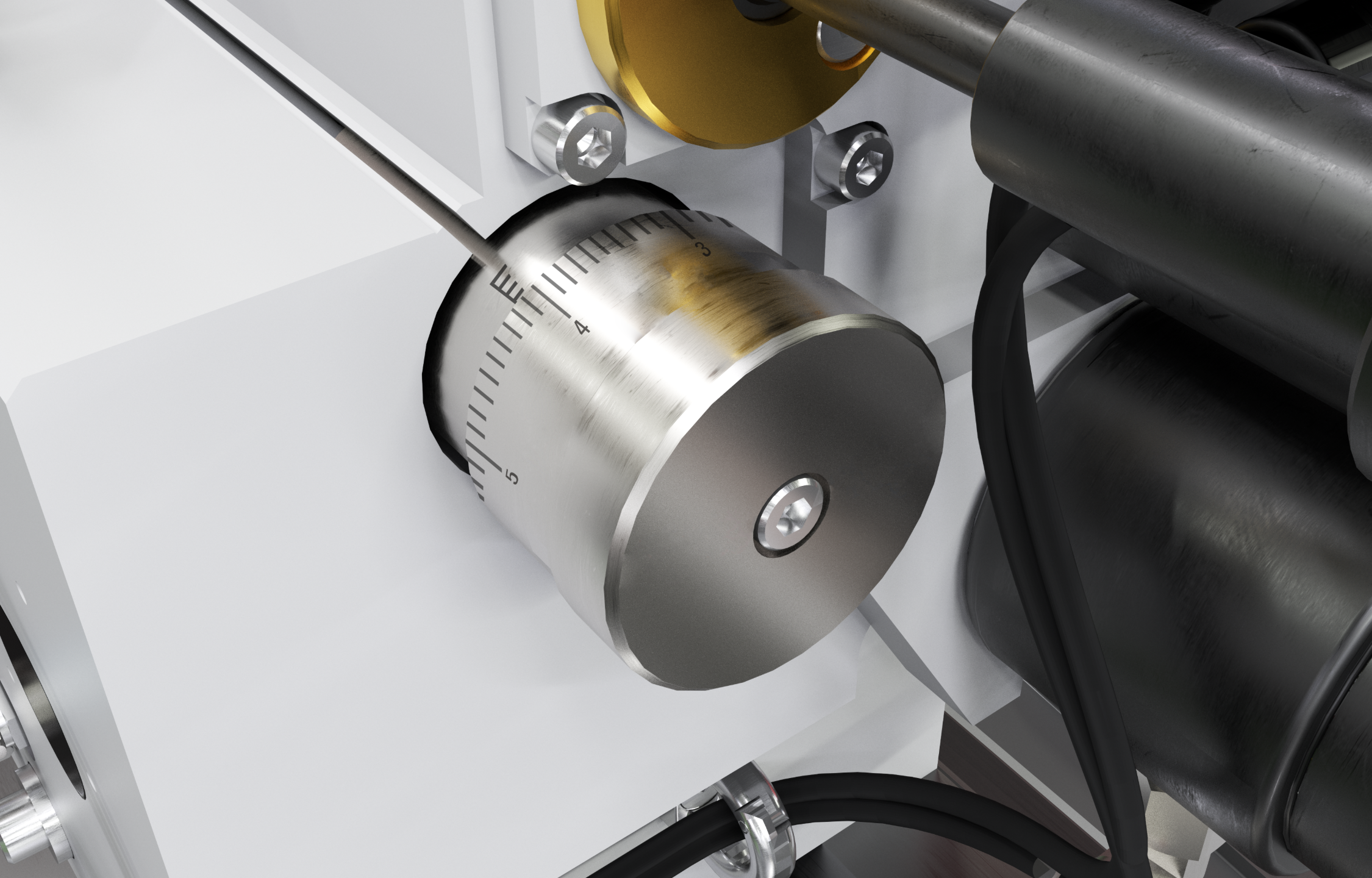

Images
Hardware / Software
Hardware:
- Selectable wheelhead:
- Fixed wheelhead, adjustable 0°/15°/30°
- Universal wheelhead, Hirth 2.5°, manual
- Universal wheelhead, Hirth 1°, automatic
- Up to three grinding tools selectable
- Frequency-controlled belt-driven or motor spindles available
- External and internal grinding possible in one setup
- C-axis for out-of-round and thread grinding
- Fixed table or swiveling table (up to 8.5°)
- Portable control unit for setup close to the grinding process
- Automatic operating door
- Granitan® S103 mineral-cast machine base
Software:
- C.O.R.E. OS operating system
- Very simple programming thanks to StuderPictogramming
- Reduced set-up and resetting times with STUDER QuickSet
- Standardized interfaces for loader and peripheral devices
- Flexibly upgradeable with integrated software modules
- StuderWIN programming software (optional) for creating grinding and dressing
programs on an external PC
Technical Data
Linear Axes
Max. Travel X
285 mm
Max. Travel Speed X
10'000 mm/min
Max. Travel Z
800 mm
Max. Travel Speed Z
20 000 mm/min
Spindle drive
Max. Spindle Power
11,5 kW
Max. Number Of Revolutions
1'500 /min
Max. Grinding Wheel Diameter
500 mm
Max. Grinding Wheel Width
80 mm
Swiveling Axes
Swiveling Range B
190 °
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length
650 -
∞ mm
Max. Workpiece Weight
120 kg
Distance Between Centers
650 mm
Center Height
175 mm
Linear Axes
Max. Travel X
285 mm
Max. Travel Speed X
10'000 mm/min
Max. Travel Z
1'150 mm
Max. Travel Speed Z
20'000 mm/min
Spindle drive
Max. Spindle Power
12.5 kW
Max. Number Of Revolutions
40'000 /min
Max. Grinding Wheel Diameter
500 mm
Max. Grinding Wheel Width
80 mm
Swiveling Axes
Swiveling Range B
190 °
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length
1'000 mm
Max. Workpiece Weight
120 kg
Distance Between Centers
1'000 mm
Center Height
175 mm
