Tool Measuring Applications

Manufacturers around the world depend on extremely precise metalcutting tools – which means the suppliers of those tools must meet and surpass even higher standards. That’s why tooling OEMs rely on UNITED GRINDING for world-class measurement equipment designed specifically for the cutting tool industry.

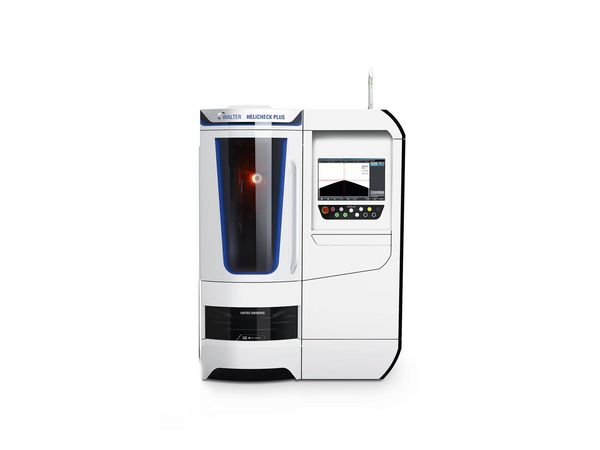

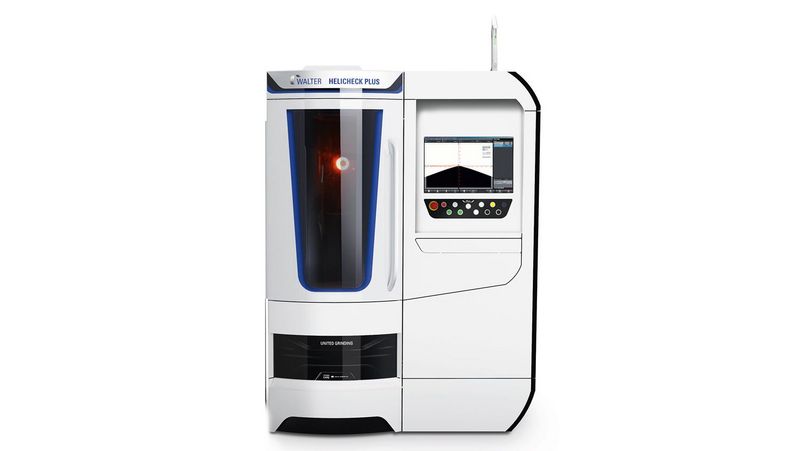

Designed to meet the exacting standards of Germany’s national metrology institute, the Physikalisch-Technischen Bundesanstalt, the WALTER HELICHECK series of optical measuring machines can handle today’s most complex rotationally symmetrical tools. These machines are certified for sub-micron accuracy and >1.5 µm repeat accuracy – and additional fourth CNC axes and laser sensors also allow for even greater precision along with full 3D scans with the most advanced HELICHECK technology. WALTER also offers manual measuring machines, including HELISET for tracking grinding wheel shape and HELISET PLUS for measuring complex tools prior to erosion processes.

Let's Talk

Tool Measuring Machines

HELICHECK 3D

The HELICHECK 3D precision measuring machine allows you to scan tools and production parts and then generate a 3D model.

Details

HELICHECK ADVANCED

The optical CNC measuring machines HELICHECK ADVANCED measures complex geometries on rotationally symmetrical tools with a repeatability of 1.5 μ.

Details

HELICHECK PRO

The fully automatic HELICHECK PRO measuring machine can be used universally. It can measure tools with a diameter of 1 to 150 mm. Maximum tool length up to 330 mm is possible. With HELICHECK PRO, you can easily and comfortably monitor your production process.

Details

About WALTER

WALTER is a world leader in tool grinding technology, with an extensive product line that includes the HELITRONIC VISION tool grinder (featuring linear/torque motors in all axes) and the HELITRONIC POWER universal CNC tool grinder.
